Description

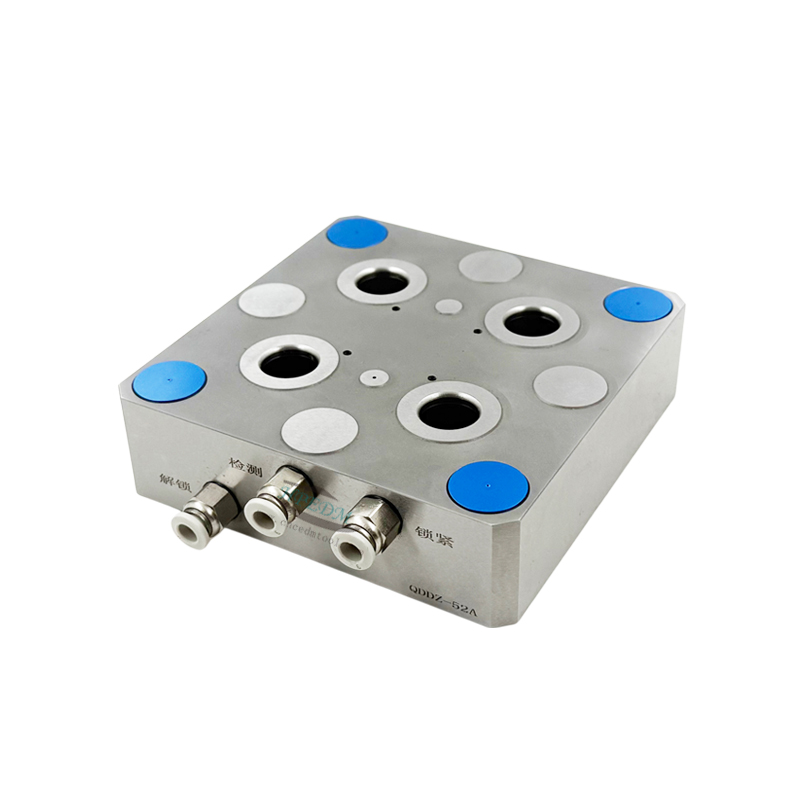

- HPEDM® pneumatic zero point plate HE-QDDZ-52A
- Compatible with lang vise system.
- SPECIFICATIONS:
- Penumatic , for clamping Self centering vise.
- Size：115*115*35mm
- Stud Pitch : D16/52mm
- Pressure : 0.5-0.8MPa
- Trachea size: 6mm
- Clamping force: 20000 N
- Lift Ioad: 330KG
- Hardness : HRC 55-58
- Weight: 3.1kg
- Warranty: 1 year

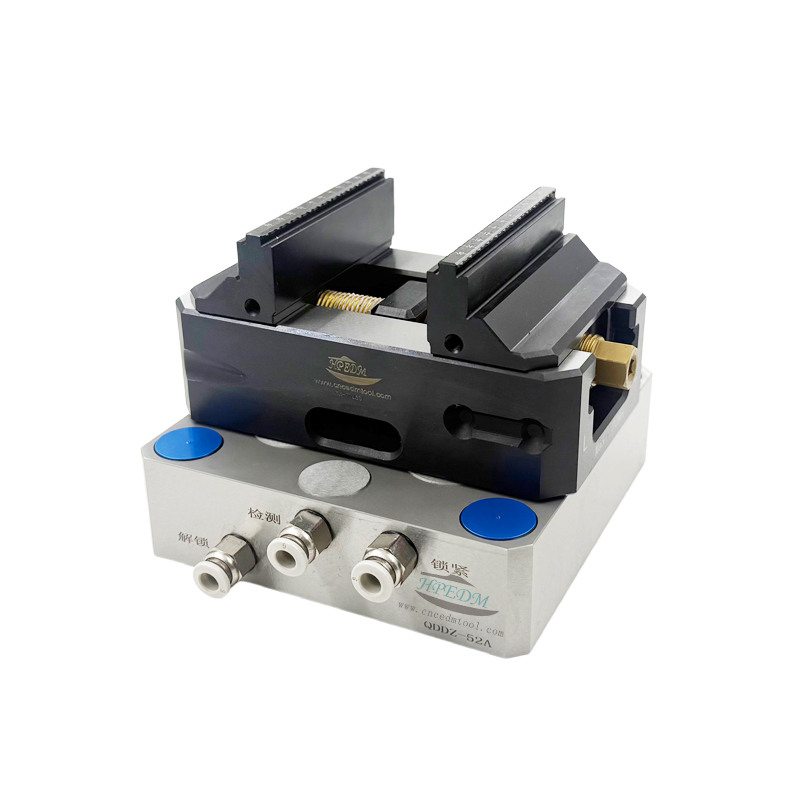

- Application: For CNC machine centerFixed on 4 axis or 5 axis CNC machine center for clamping Self centering vise , precision machining.
