Description

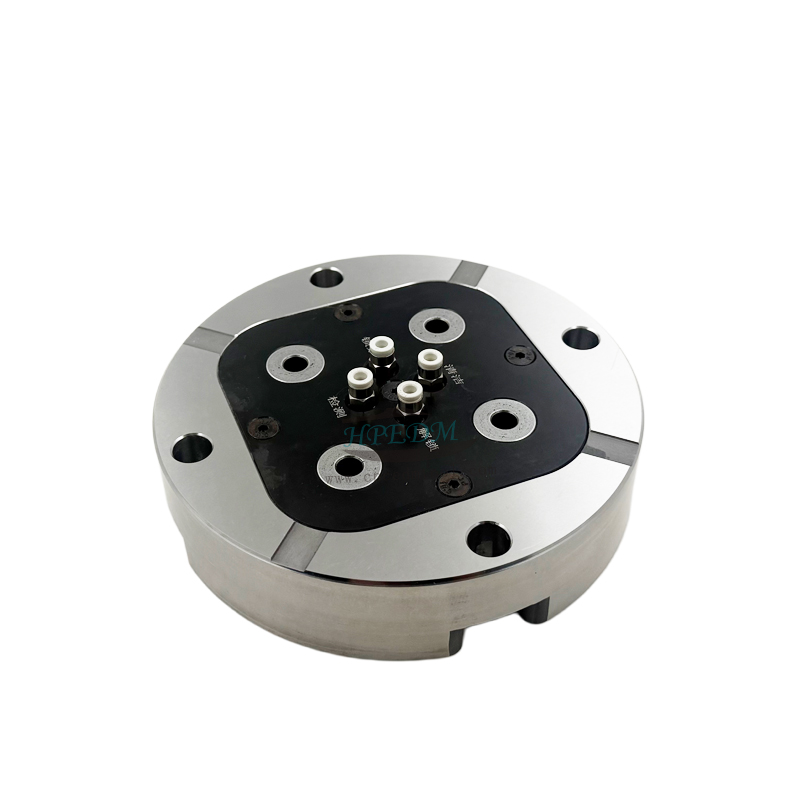

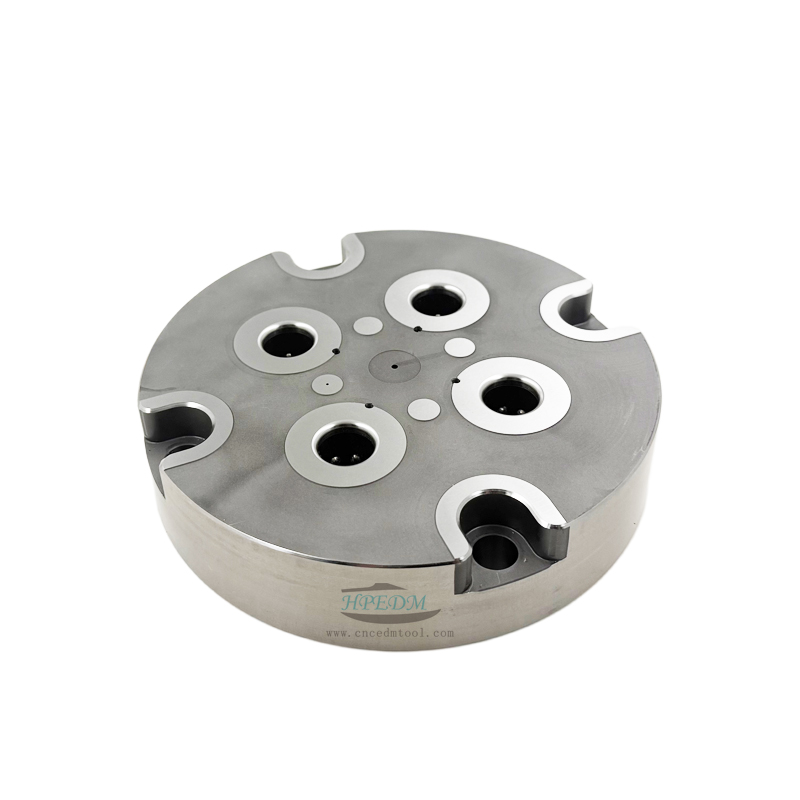

- HPEDM® Lang pneumatic zero point plate HE-QDDZ-52B
- Compatible with lang vise system.
- SPECIFICATIONS:

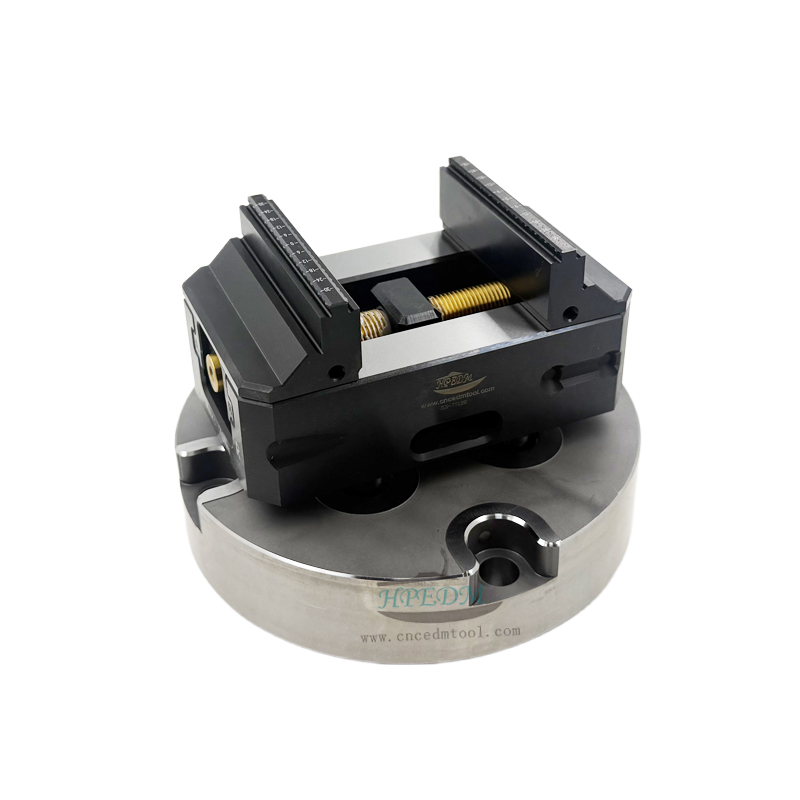

- Penumatic , for clamping Self centering vise.

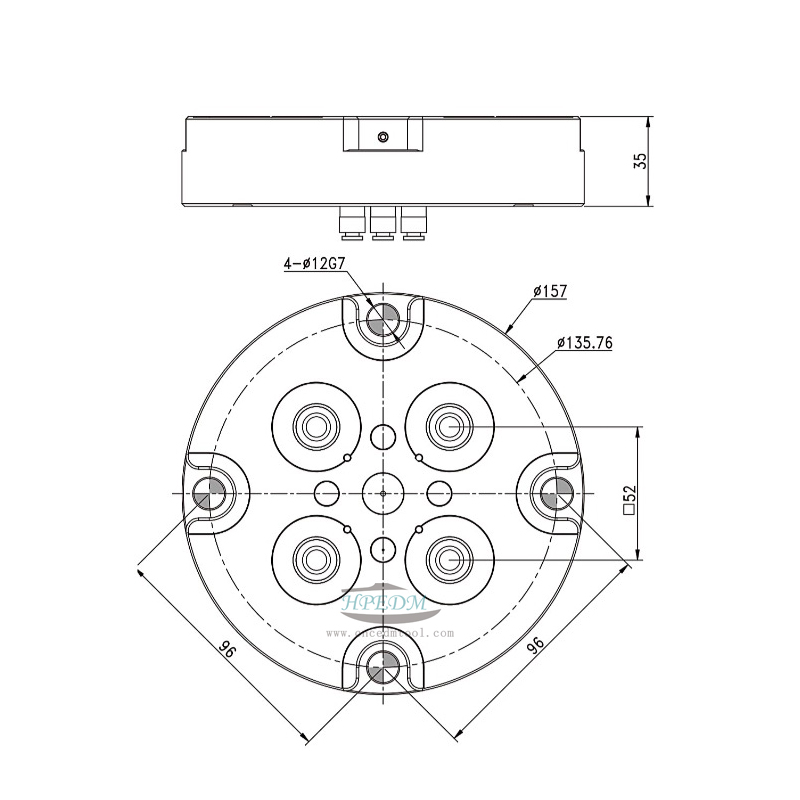

- Size：D157*35mm
- Stud Pitch : D16/52mm
- Pressure : 0.5-0.8MPa
- Trachea size: 6mm
- Clamping force: 9000 N
- Lift Ioad: 100KG
- Hardness : HRC 55-58
- Weight: 4.5kg
- Warranty: 1 year
- Application: For CNC machine centerFixed on 4 axis or 5 axis CNC machine center for clamping Self centering vise , precision machining .
