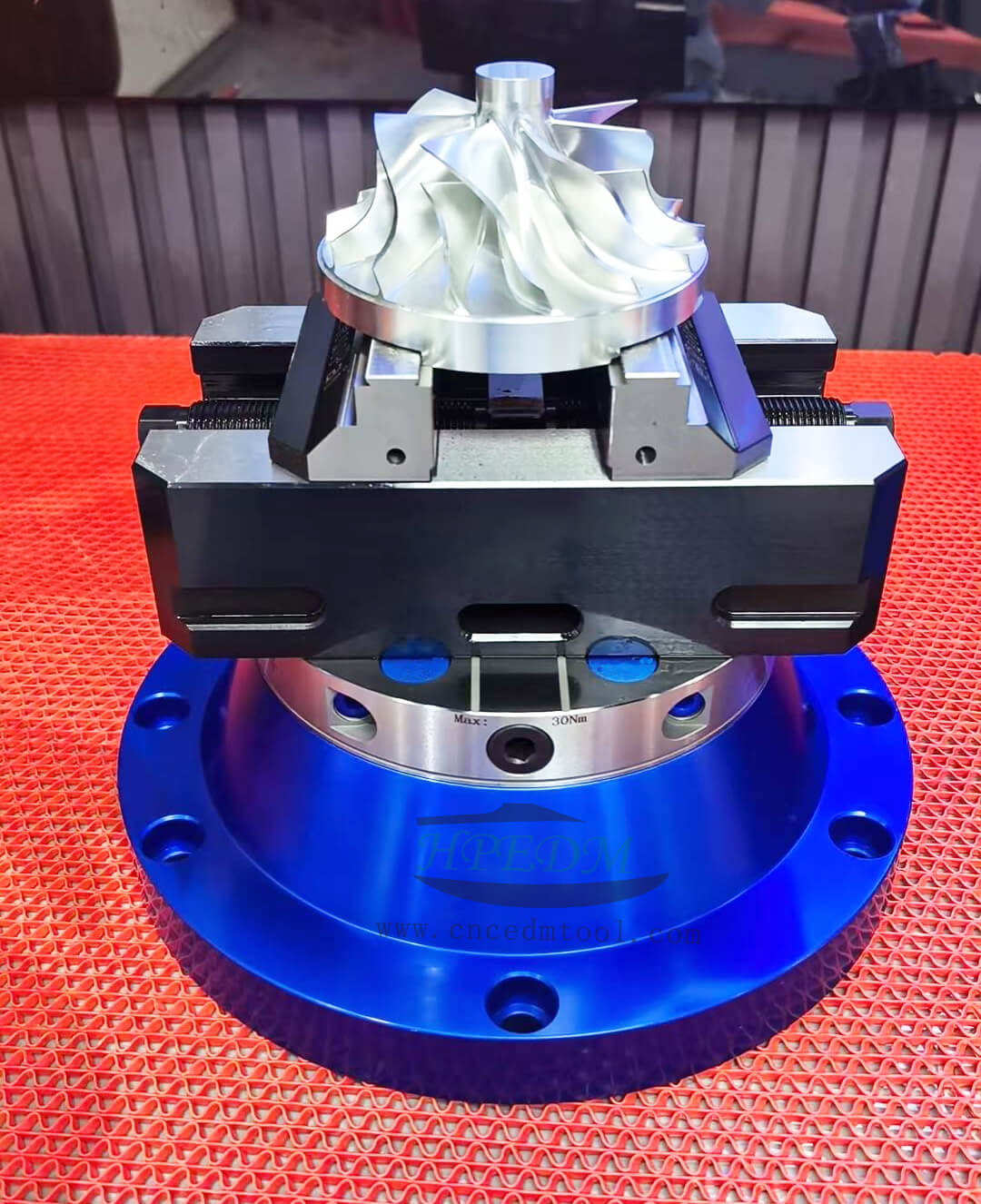

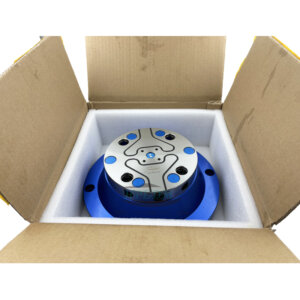

HPEDM HE-ZGDZ96B-H100 pitch 96mm heightened quick change base plate

HPEDM   pitch 96mm heightened quick change  base plate for 5 axis self centering vise 3 jaw manual chuck HE-ZGDZ96B-H100
same as lang vise system
SPECIFICATIONS:
 Dimensions:  D276*100mm
Rivet spacing: D20/ 96mm
Repeat accuracy: 0.005mm
Hardness: HRC56-60
 Application:  using on 4 axis or 5 axis  CNC machine center for width 125mm  clamping self centering vise   .

Description

HPEDM   pitch 96mm heightened quick change  base plate for 5 axis self centering vise 3 jaw manual chuck HE-ZGDZ96B-H100
same as lang vise system
SPECIFICATIONS:
 Dimensions:  D276*100mm
Rivet spacing: D20/ 96mm
Repeat accuracy: 0.005mm
Hardness: HRC56-60
 Application:  using on 4 axis or 5 axis  CNC machine center for width 125mm  clamping self centering vise   .
