Description

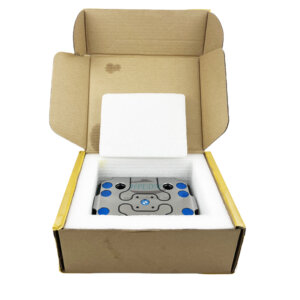

- HPEDM 5 axis self centering vise’ Quick•Point® 96, Single Plate HE-KHDZ96-A
- 192 x 156 x 27 mm, with bores 150 x 100 / 50 mm and clamping edge
- Compatible with Lang 45400
- SPECIFICATIONS:
- Dimensions: 192*156*27mm
- Studs spacing: D20/ 96mm
- Clamping power: 18KN
- Torque: 30Nm
- Repeat accuracy: 0.005mm
- Hardness: HRC56-60
- Weight: 5.4kg
- Material： Steel
- Application: using on 4 axis or 5 axis CNC machine center for clamping self centering vise D96mm.The clamping edge of this zero-point plate allows it to be mounted on essentially all machine tables if clamps are used for this purpose.
The Quick•Point® 96 variant is also popular as an interface on pallet automations or on your own customized clamping fixture.
Its mounting holes are also suitable for the Quick•Point® riser made of aluminium, which can be used to improve accessibility for 5-sided machining.
