Description

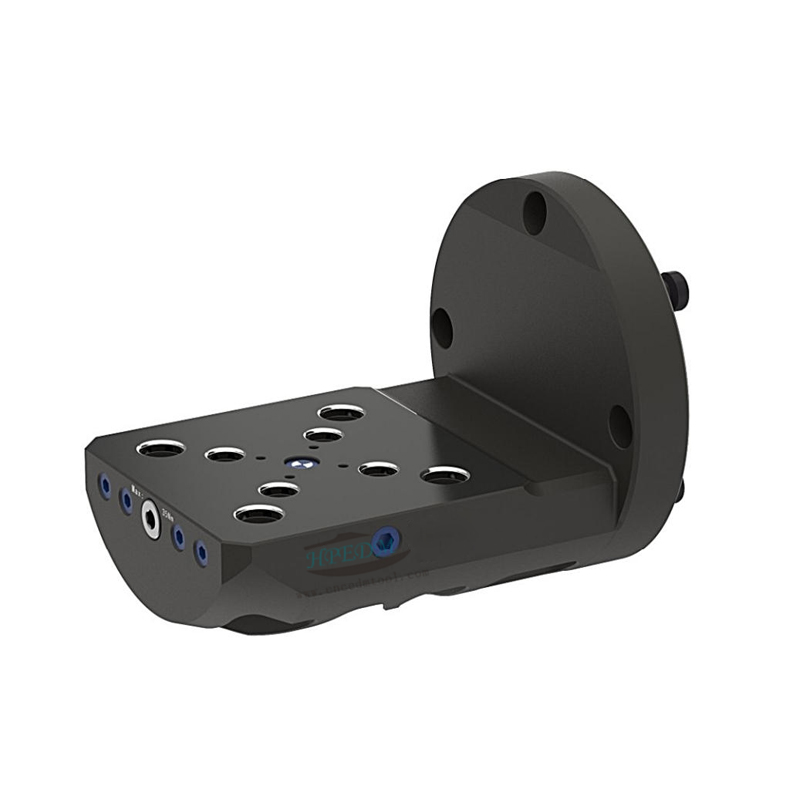

- HPEDM Lang Quick•Point® 52/96, 4 axis combi base plate HE-L9652
- Compatible with lang and HWR vise system
- SPECIFICATIONS:

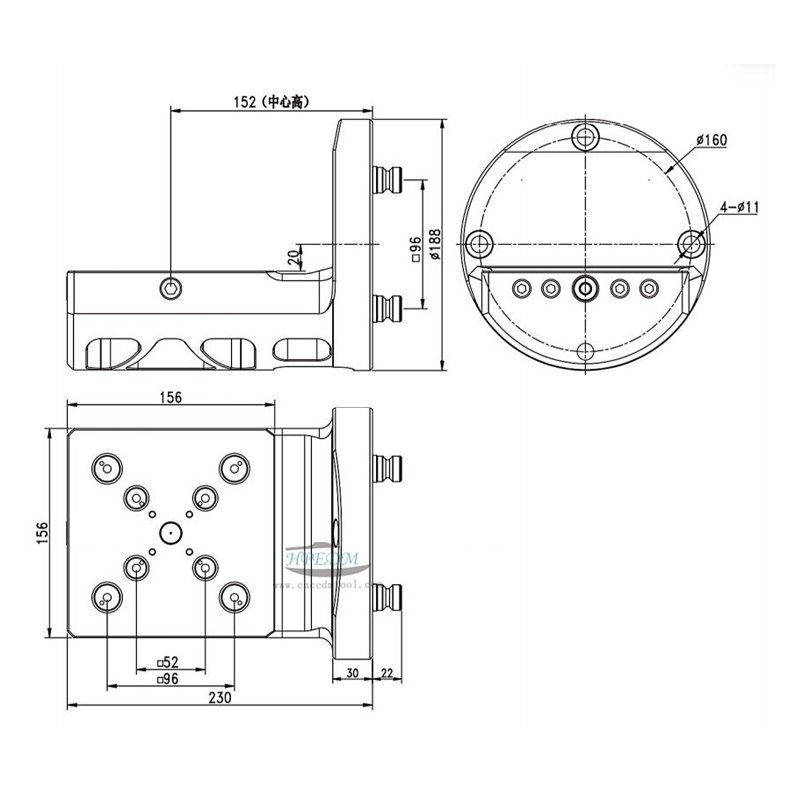

- Dimensions: D188*230
- Rivet spacing: D20/ 96mm
- Repeat accuracy: 0.005mm
- Hardness: HRC56-60
- Material: tool steel
- Application:

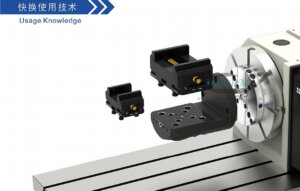

- For 4 axis CNC machine center for quick change clamping self centering vise
- Clamping device and workpiece can be rotated by 4x 90° with high repeatability , in 3-axis machines or on fourth axes.
- The combined zero-point grids of 52 and 96 mm offer a free choice of clamping device, regardless of the vise size.
