Description

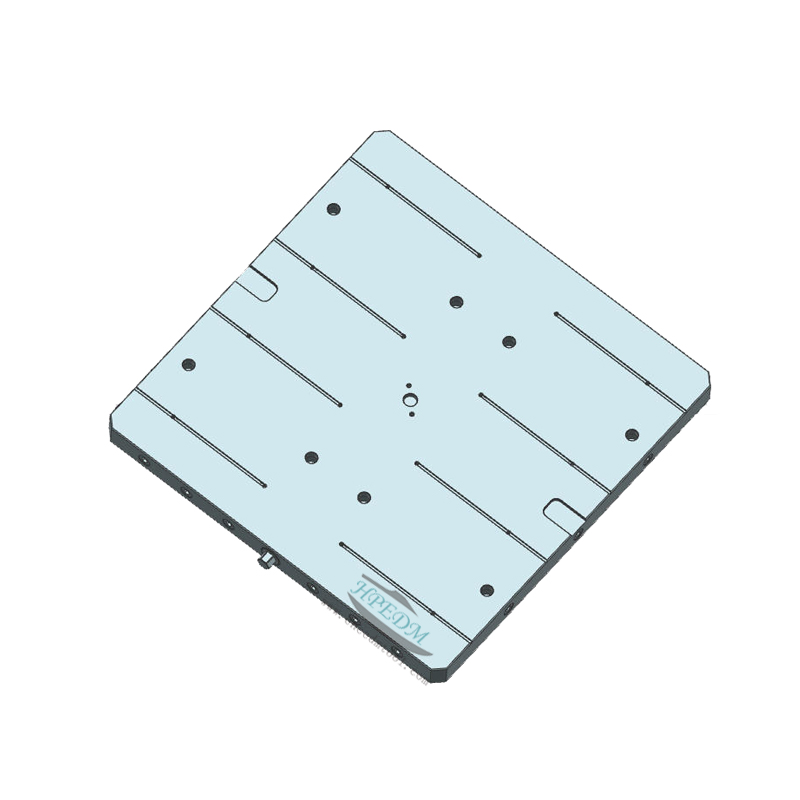

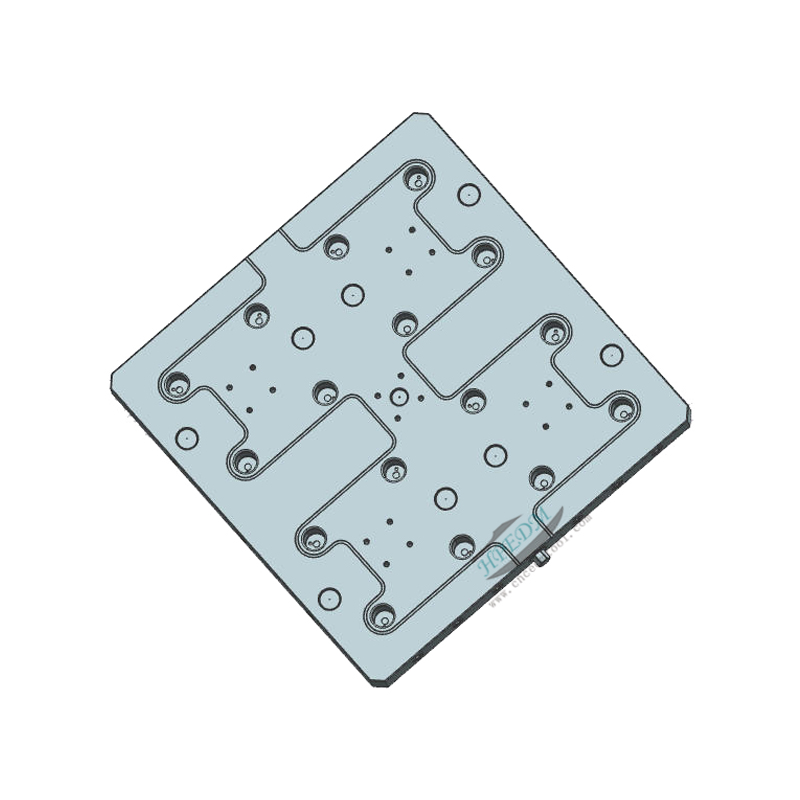

- HPEDM self centering vise’s quick point 4-fold Grid plate HE-KHDZ96A-4
- Compatible with Lang technik 45740 45741 and HWR 660050 system perfectly.
- SPECIFICATIONS:

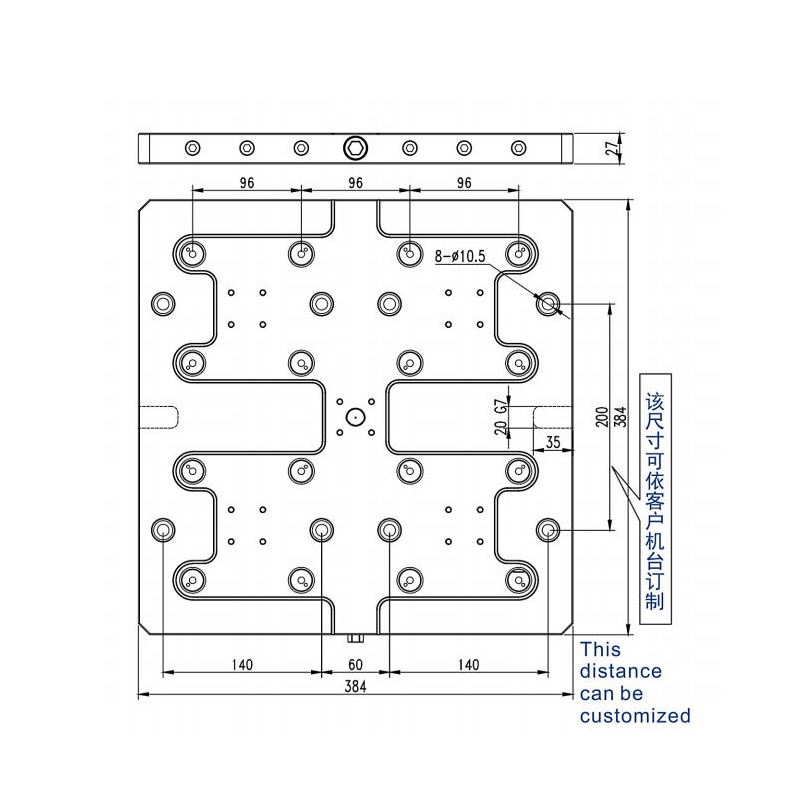

- Size:384*384*27mm
- Rivet Pitch: 20D/96mm
- Repositioning Accuracy: 0.005mm
- Locking Force: 18KN(4 Rivet)
- Weight: 28.2kg
- Application: Four stations. Fix 4 pcs vise at a time.
using on 4 axis or 5 axis CNC machine center for vertical or horizontal precision machining,
This 4-fold grid plate 96 has mounting holes for M10 screws with a spacing of 200 x 200 mm.
It can, therefore, be used on machine tables , as well as on machine tables with cross-shaped or star slots.

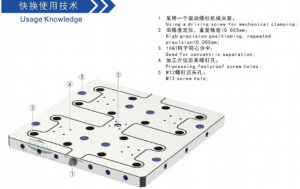

such as Hermle, Matsuura or Hurco. With this multiple grid plate, four clamping positions are operated with only one screw.
