HPEDM® Lang HWR Quick•Point® 96, Grid Plate 45720 HE-KHDZ96A-2

Description

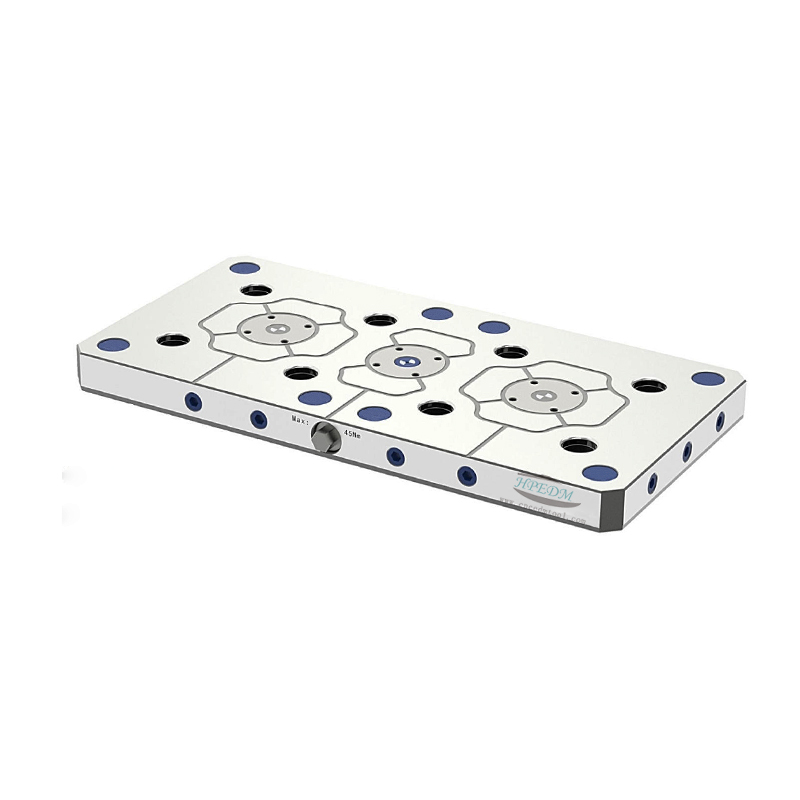

HPEDM® Quick•Point®  solidpoint® 96, Grid Plate 45720 HE-KHDZ96A-2

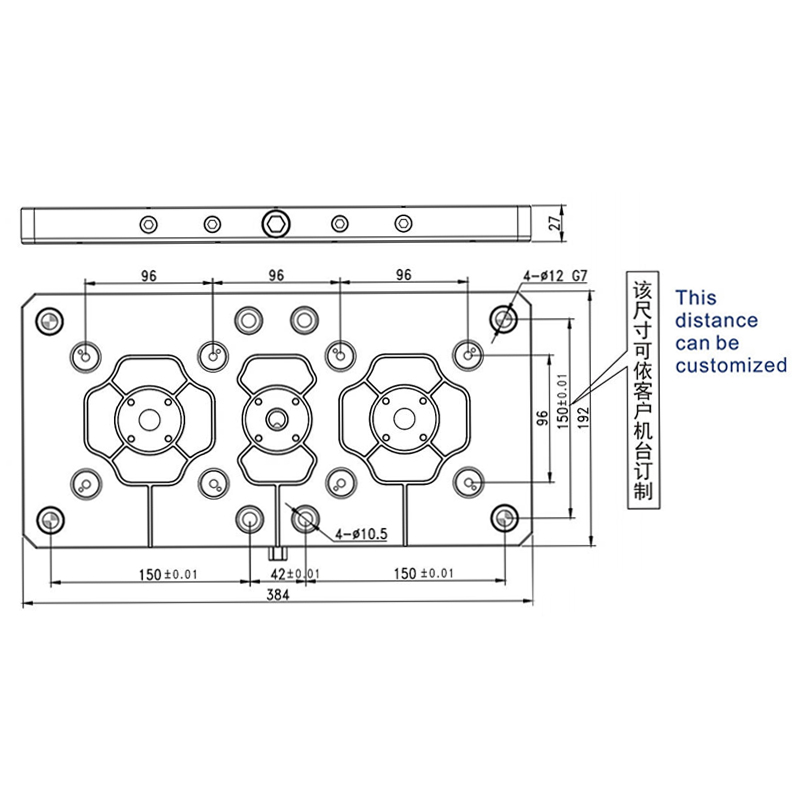

2-fold, 384 x 192 x 27 mm, with mounting bores 300 x 150 mm

Comptabile with HWR  660025 Lang plate 45720

SPECIFICATIONS:

 Dimensions:  384*192*27mm

Rivet spacing: 20D/96mm

Repeat accuracy: 0.005mm

Hardness: HRC55-58

Locking Force: 18KN(4 Rivet)

Clamp type: Single clamping

Material: stainless  Steel

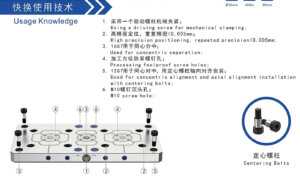

Application:

The 2-fold grid plate 96 is very often used as a supplement to the 4-fold grid plate 96. Combining or lining up these two multiple grid plates expands the zero-point grid, creates more clamping positions and increases the contact surface on the machine table when using larger clamping devises, such as the Makro•Grip® Ultra system. With a continuous zero-point grid, the available space on the machine table can be used efficiently.
