Description

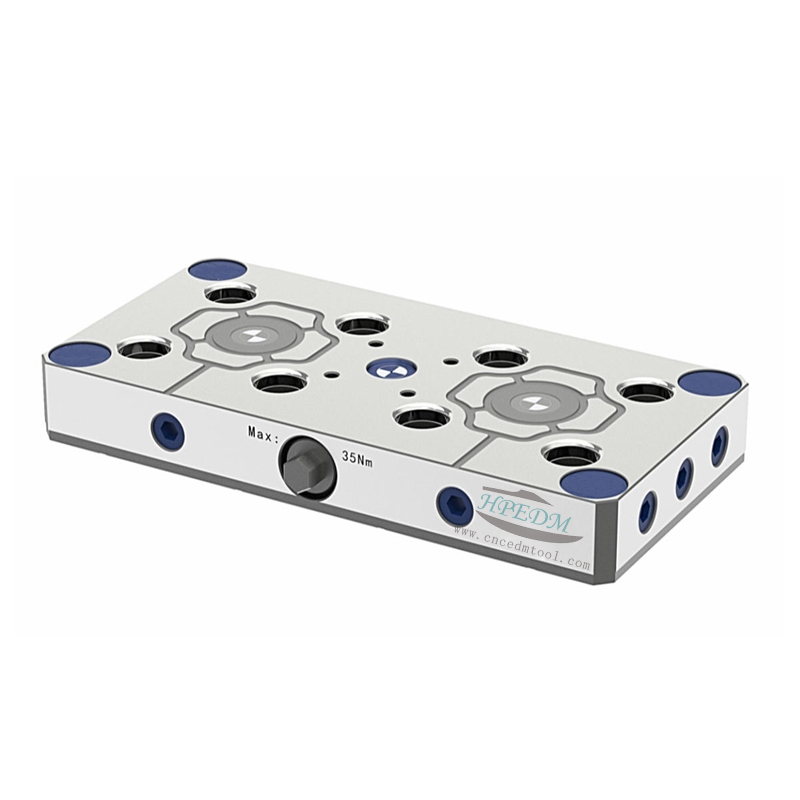

- HPEDM® Quick•Point® solidpoint® 52, Grid Plate 45621 HE-KHDZ52A-2
-

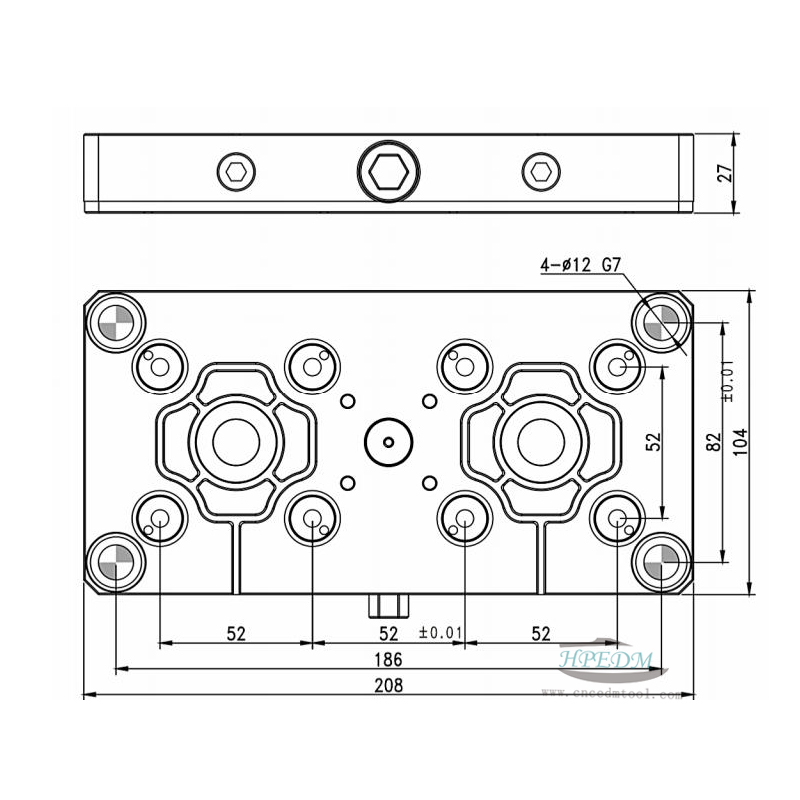

2-fold, 208 x 104 x 27 mm, with mounting bores 186 x 82 mm
Comptabile with HWR Lang plate 45621
- SPECIFICATIONS:
- Dimensions: 208*104*27mm
- Rivet spacing: 16D/52mm
- Repeat accuracy: 0.005mm
- Hardness: HRC55-58
- Locking Force: 18KN(4 Rivet)
- Clamp type: Single clamping
- Material: stainless Steel
- Application:

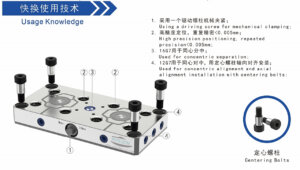

- With this 2-fold plate with the grid size 52 mm, two clamping positions are actuated with on screw.
- The multiple plate is suitable for the 3- and the 4-sided clamping tower, as well as the Quick•Tower clamping tower for horizontal machining centers.
- It can also be mounted as a multiple clamping solution on the customer’s own fixtures and towers.
