Description
- HPEDM self centering vise’s Quick•Point® 52, Round Plate HE-KHDZ52-D

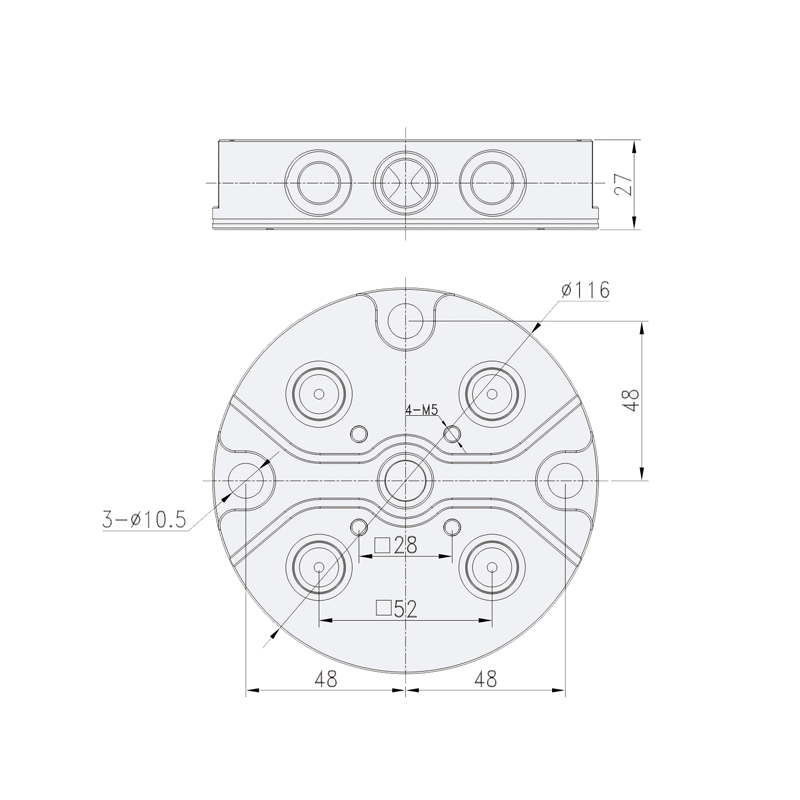

- ø 116 x 27 mm, with mounting bores at a distance of 96 mm
- Compatible with Lang 45750
- SPECIFICATIONS:
- adapter for self centering vise width: 77mm 46mm
- Dimensions: ⌀116*27mm
- Stud size: D16
- Stud distance: 52mm.
- Locking Force: 18KN(4 studs)
- Torque: 30Nm
- Repeat Accuracy: 0.005mm
- Material: steel
- Weight: 1.8kg
- Application: clamping 5 axis 46/77mm width vise .
- fixing on 4 axis or 5 axis CNC machine center for vertical or horizontal precision machining,Due to its size, this round plate is a solution for small tables and axes.
With a diameter of only 116 mm, it is the most compact of all Quick•Point® zero-point plates.
It has 2 mounting holes at a distance of 96 mm and is often adapted to small sub-plates.
