HPEDM® System 3R pallet 70*70mm 3R-601.7E-P

Description

HPEDM system 3R type pallet 70*70mm  HE-R06655

Compatible with 3R pallet   3R-601.7E-P

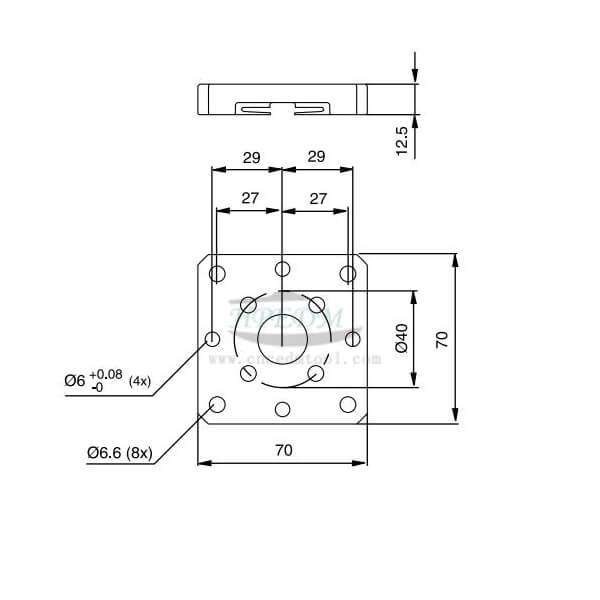

Specifications: Hardened and precision-cast, with clearance holes for four
fixing screws.
Note: Must be mounted on the workpiece/fixture before it is
locked in a chuck.
• Adapted for automatic changing
• Fixed index positions 4×90°
• Rust-resistant
• Supplied in sets of 8

• Flushing connect

Mount:  With bolts or clamps.

Application:   On CNC machine center processing EDM electrode for mould industry

Repeatability: +/- 0.002mm
