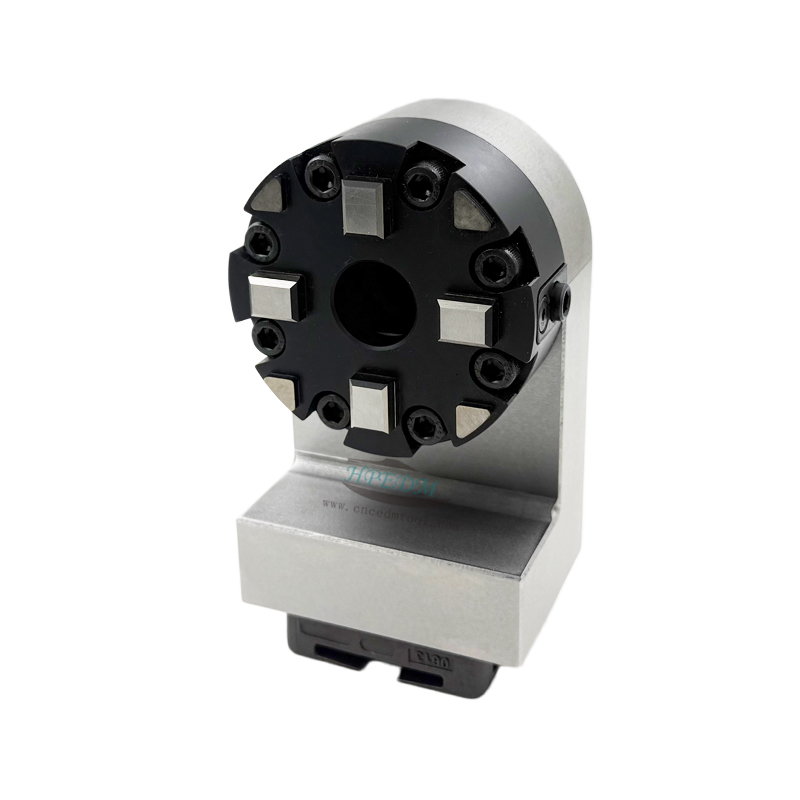

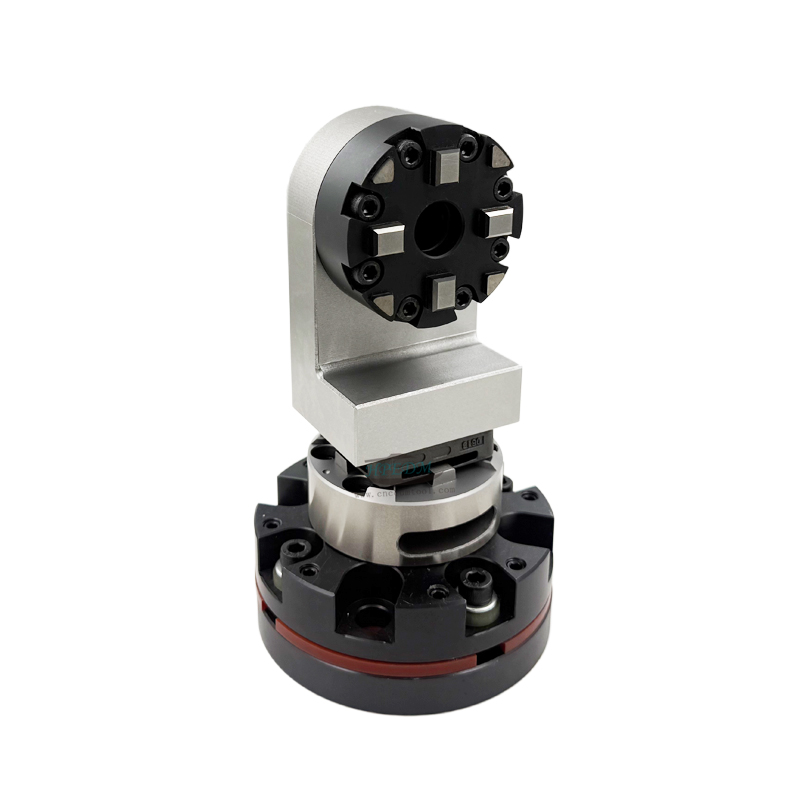

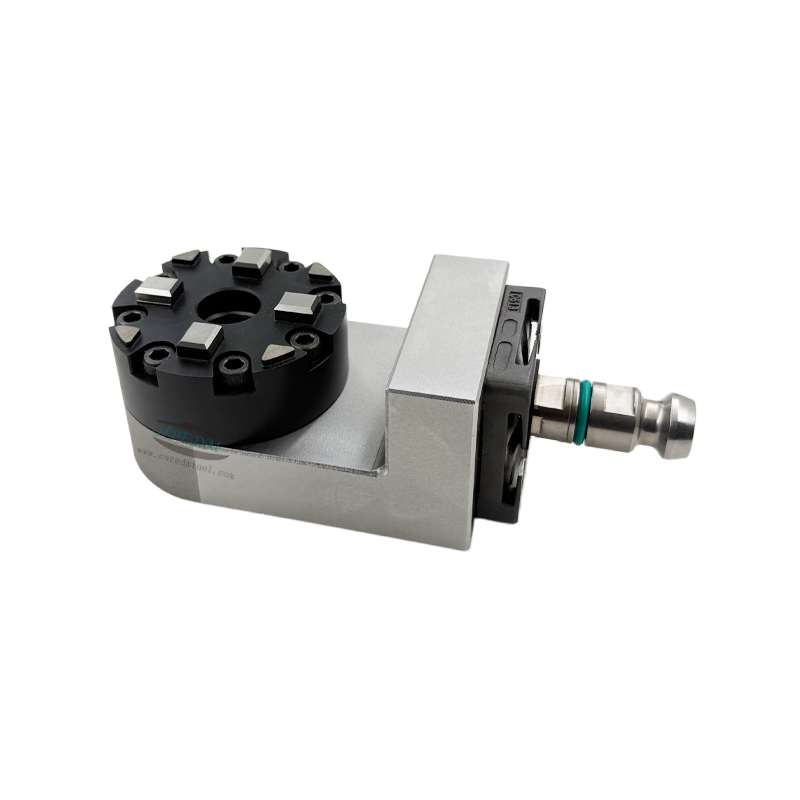

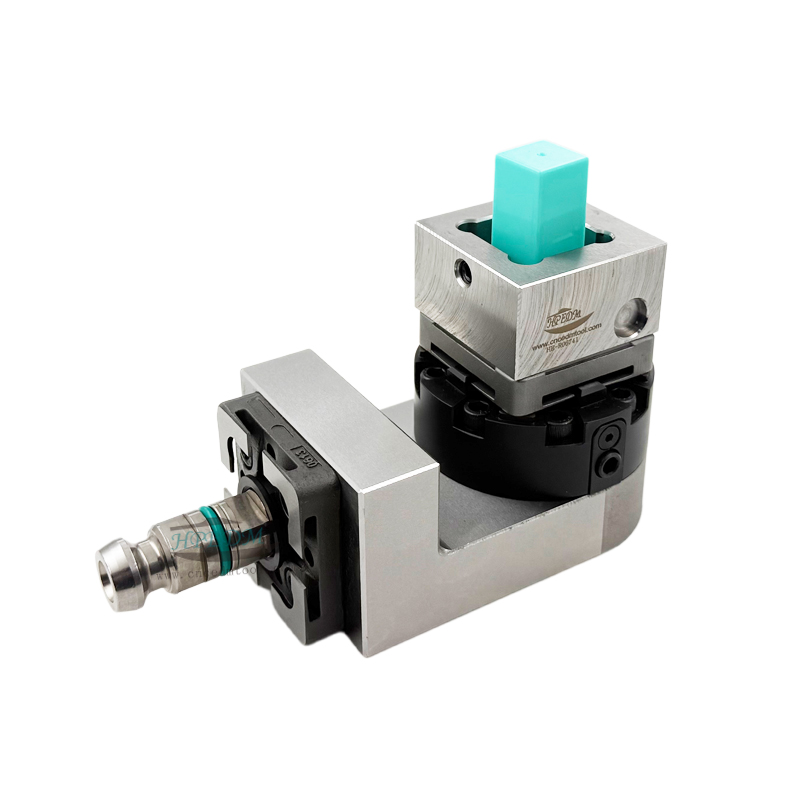

HPEDM® system 3R EDM machine chuck with right pallet 3R-600.24-s

Description

HPEDM system 3R EDM machine chuck with right pallet 3R-600.24-s  HE-R06688

Specifications:

R type manual chuck    operation: manual

• Required drawbar  , need to be ordered seperately

• All references of hardened and ground steel
• Required air pressure 6±1 bar
• Fixed index positions 4×90º
• Air-blast cleaning of the Z-references
• Turbo locking
• Weight: 4 kg


Application: on  CNC EDM machine for EDM die sinking on X and Y axis.
On CNC sinker EDM  machine center processing EDM electrode for plastic injection mould making industry.

Mount:  With bolts or clamps.

Repeatability: 0.002 mm

It was used on system 3R perfectly
