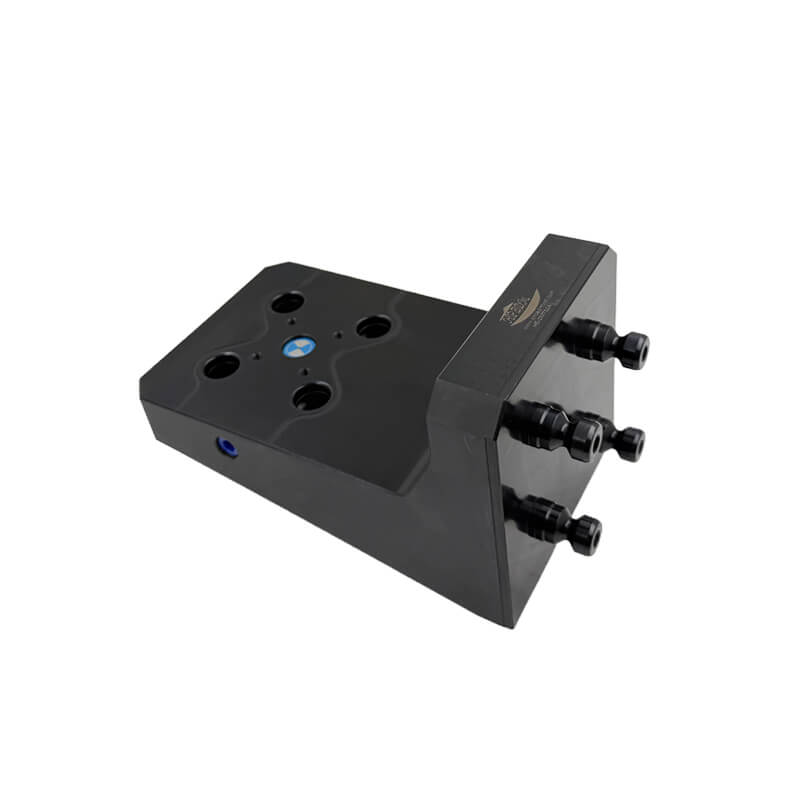

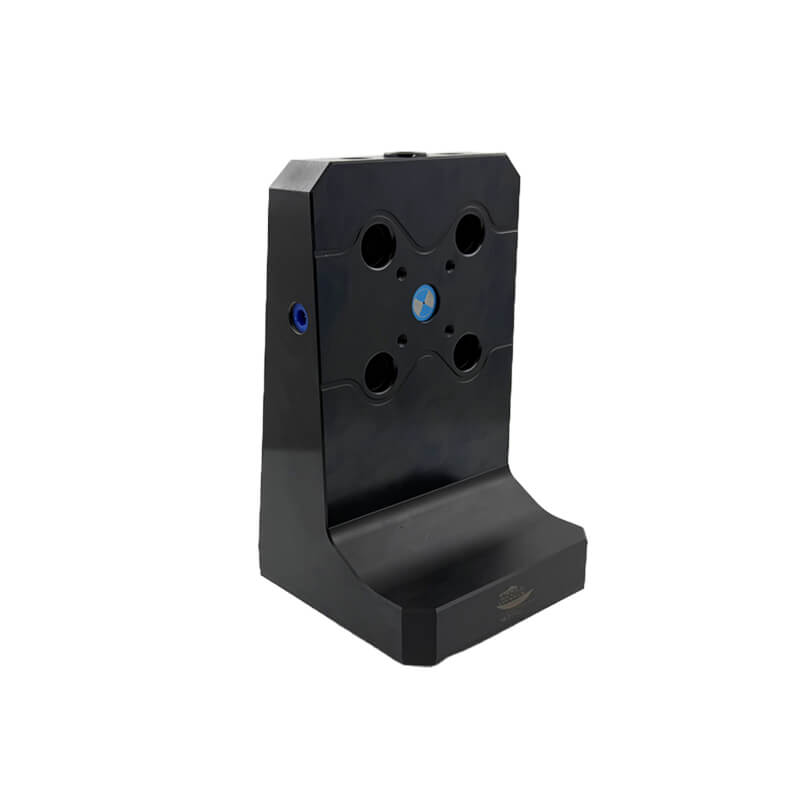

HPEDM® vertical Single Side Base for self centering lang vise HE-DMT52A

HPEDM  vertical Single Side Base HE-DMT52A
Compatible with lang vise system
SPECIFICATIONS:

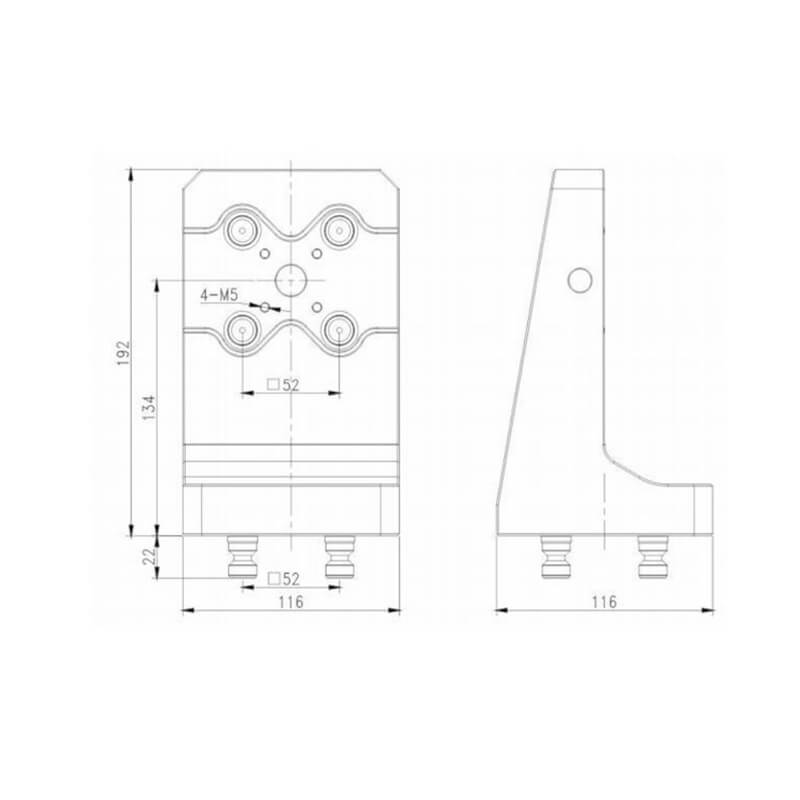

 Dimensions:  116*116*192mm
Rivet spacing: D16/ 52mm
Repeat accuracy: 0.005mm
Hardness:  HRC56-60
Material: tool  steel
 Application:  Vertical  mounting on the machine table
                             For 4 axis or 5 axis  CNC machine center for  quick change clamping self centering vise

Description

HPEDM  vertical Single Side Base HE-DMT52A
Compatible with lang vise system
SPECIFICATIONS:
 Dimensions:  116*116*192mm
Rivet spacing: D16/ 52mm
Repeat accuracy: 0.005mm
Hardness:  HRC56-60
Material: tool  steel
 Application:  Vertical  mounting on the machine table
                             For 4 axis or 5 axis  CNC machine center for  quick change clamping self centering vise
