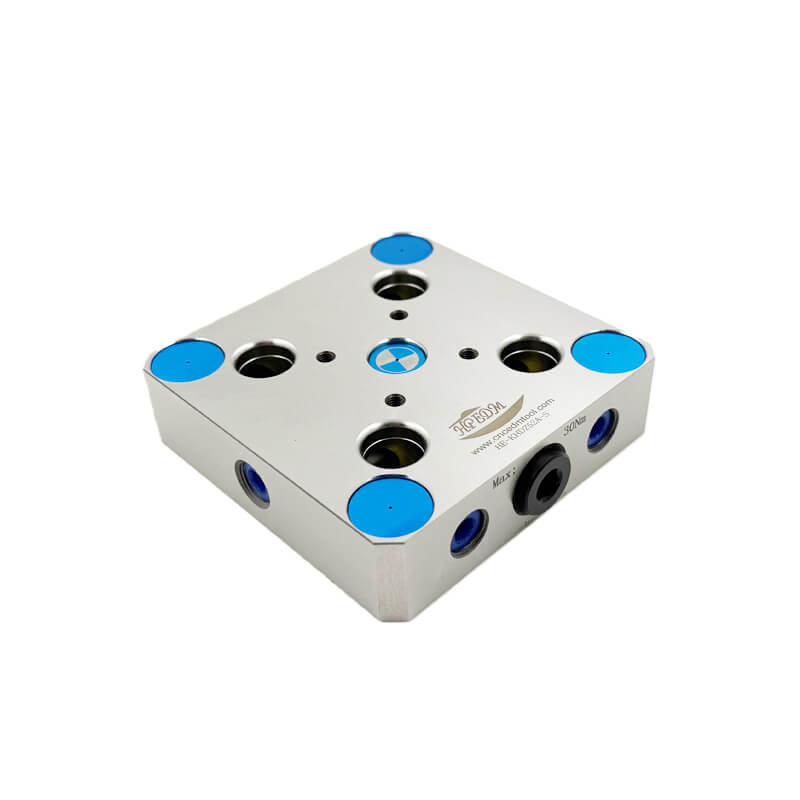

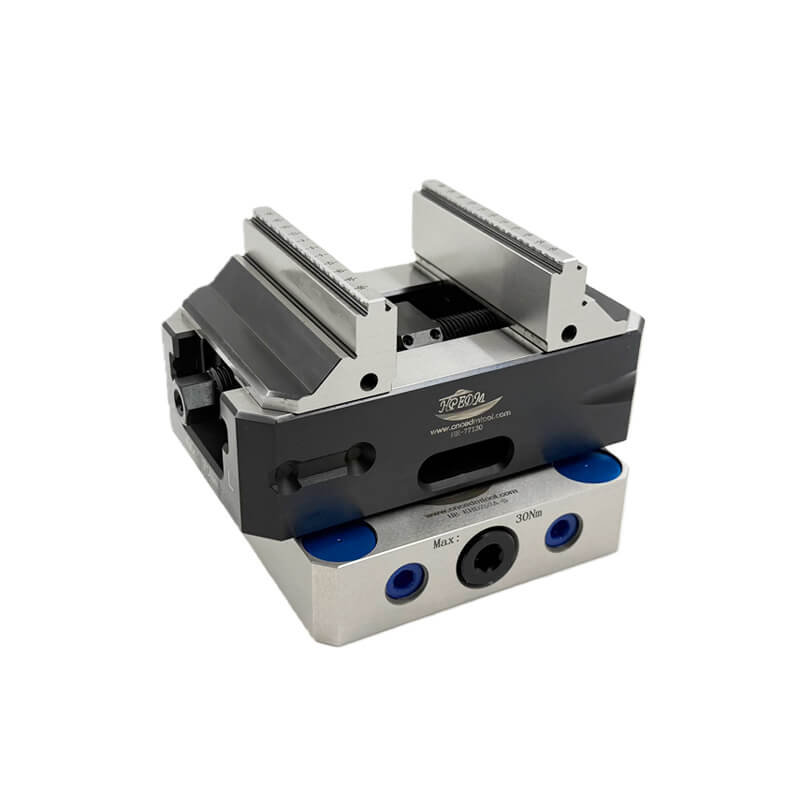

- HPEDM® Quick•Point® QUICK·POINT 52 Grid Plate 75600 HE-KHDZ52-S104
- 104 x 104 x 27 mm with bores for Quick•Tower tombstone
- Comptabile with Lang plate 75600
- SPECIFICATIONS:

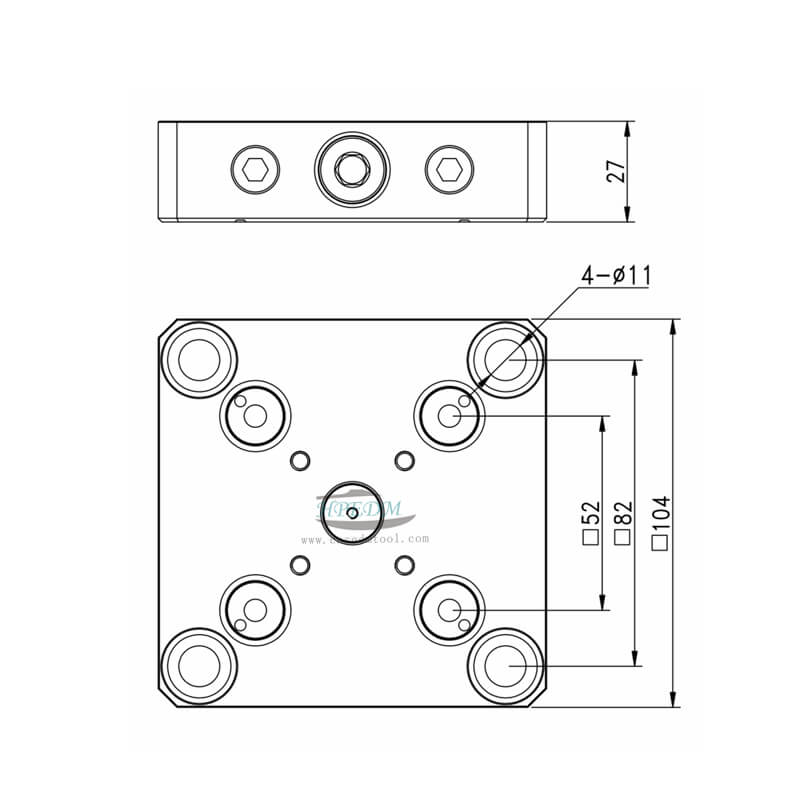

- Dimensions: 104*104*27mm
- Rivet spacing: 16D/52mm
- Repeat accuracy: 0.005mm
- Hardness: HRC55-58
- Locking Force: 18KN(4 Rivet)
- Clamp type: Single clamping
-
Mounting Bores: for 82 x 82 mm hole spacing (suitable for Quick-Tower)
- Material: Steel
- Weight: 1.82kg
- Application:
- With external dimensions of 104 x 104 mm, this grid plate is one of the smallest in the Quick•Point® series.
- It has mounting holes for M10 / M12 cylinder head screws. Its hole spacing of 82 x 82 mm is suitable for both dimensions of the Quick•Tower clamping tower for horizontal machining centers, as well as for the smaller 3- and 4-sided clamping towers MT3 and MT4. Customers also like to use it on their own trunnions, towers and angular clamps
