Description

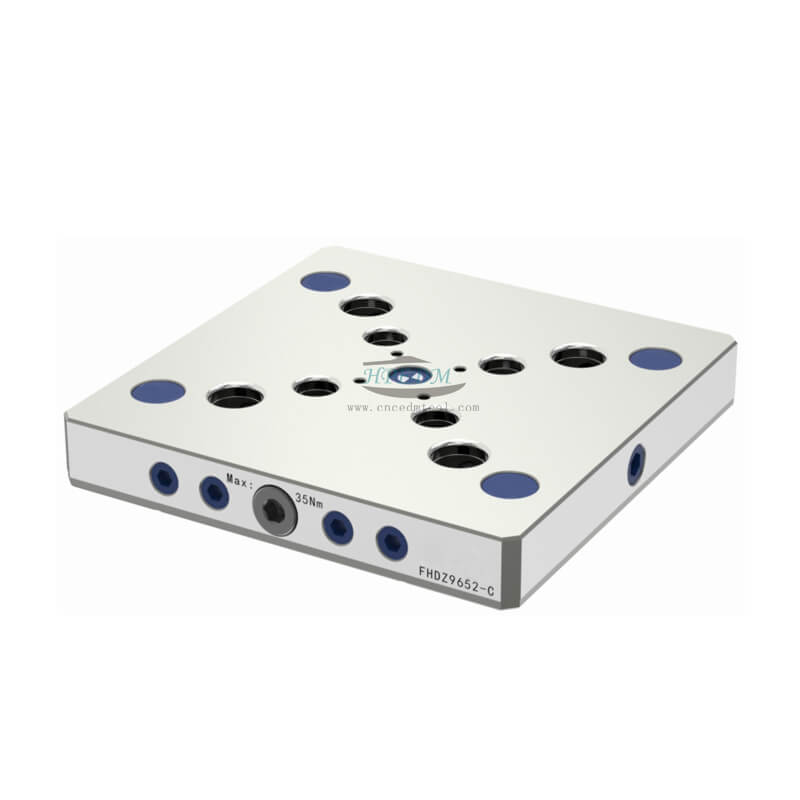

- HPEDM® Quick•Point® 52/96, Combi Grid Plate 192 x 192 x 27 mm, with mounting bores for Quick•Tower tombstone HE-FHDZ9652-C
- Comptabile with Lang plate 75748
- SPECIFICATIONS:

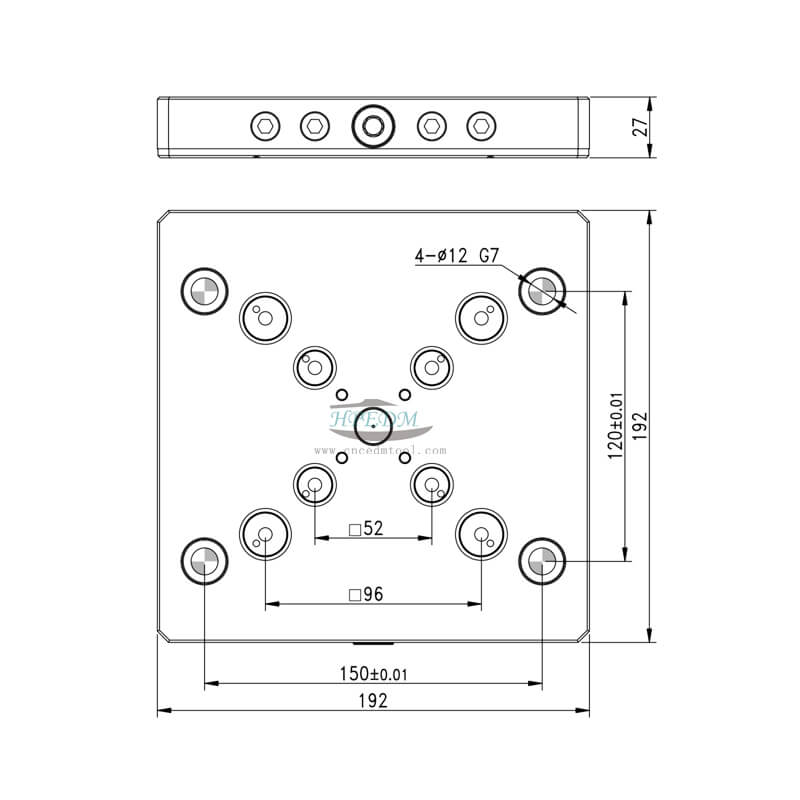

- Dimensions: 192*192*27mm
- Rivet spacing: 16D/52mm; 20D/96mm
- Repeat accuracy: 0.005mm
- Hardness: HRC55-58
- Locking Force: 18KN(4 Rivet)
- Clamp type: Single clamping
-
Mounting Bores: for 150 x 120 mm hole spacing (suitable for Quick-Tower)
- Material: Steel
- Application:
- The Quick•Point®52 / 96 combo grid plate is also available as a version with a prefabricated mounting bores for the Quick•Tower tombstone.
- The two grid sizes 52 mm and 96 mm in one zero-point plate provide the operator with unlimited choices of LANG workholding devices
- Fixing on 4 axis or 5 axis CNC machine center
