HPEDM® Lang HWR solidpoint® quick point® 96/52 zero point plate 660203 45748 HE-FHDZ9652-F2

Description

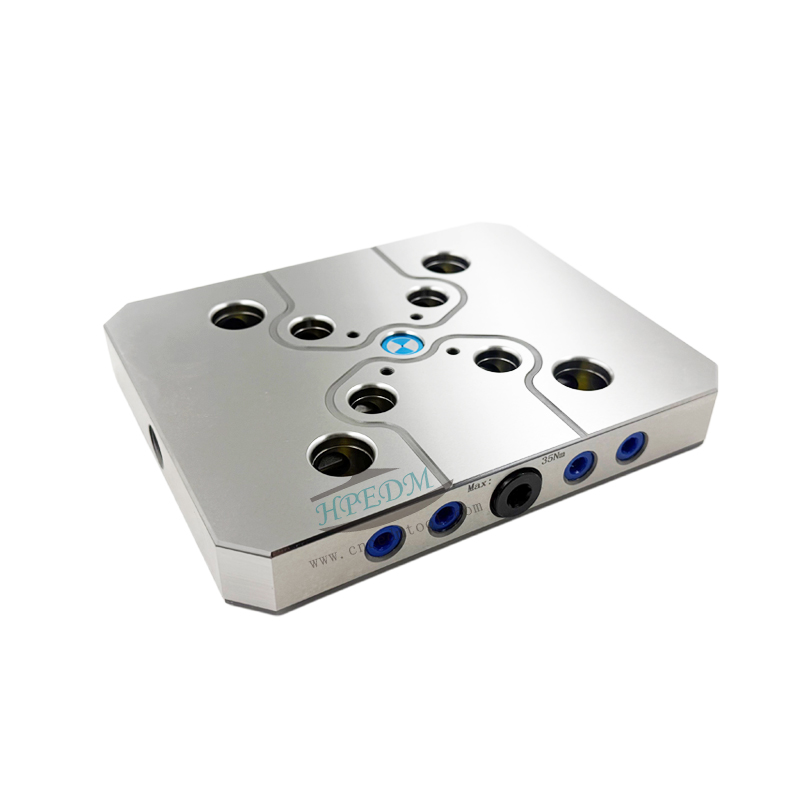

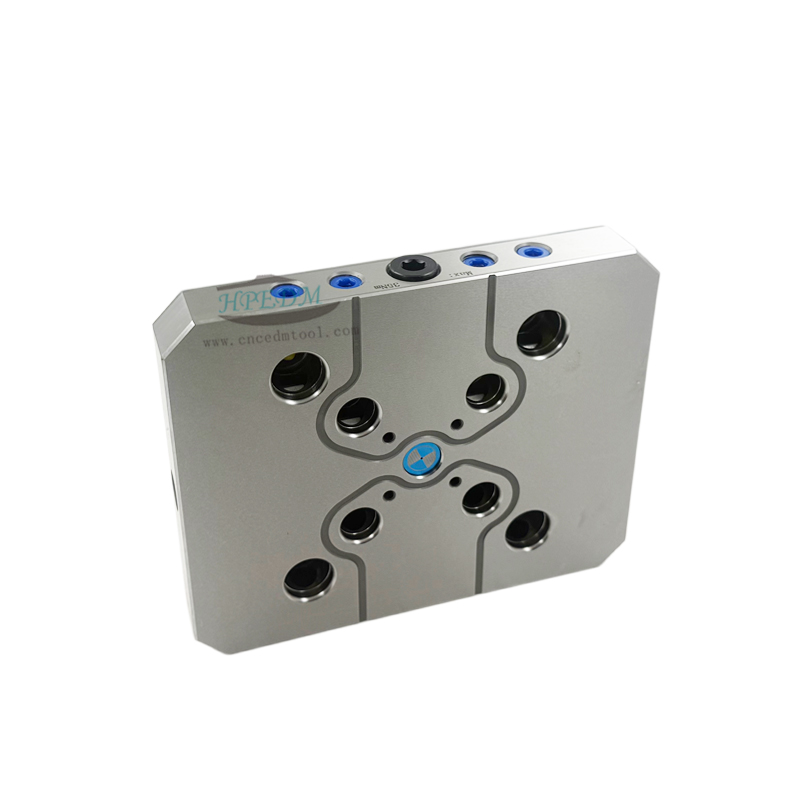

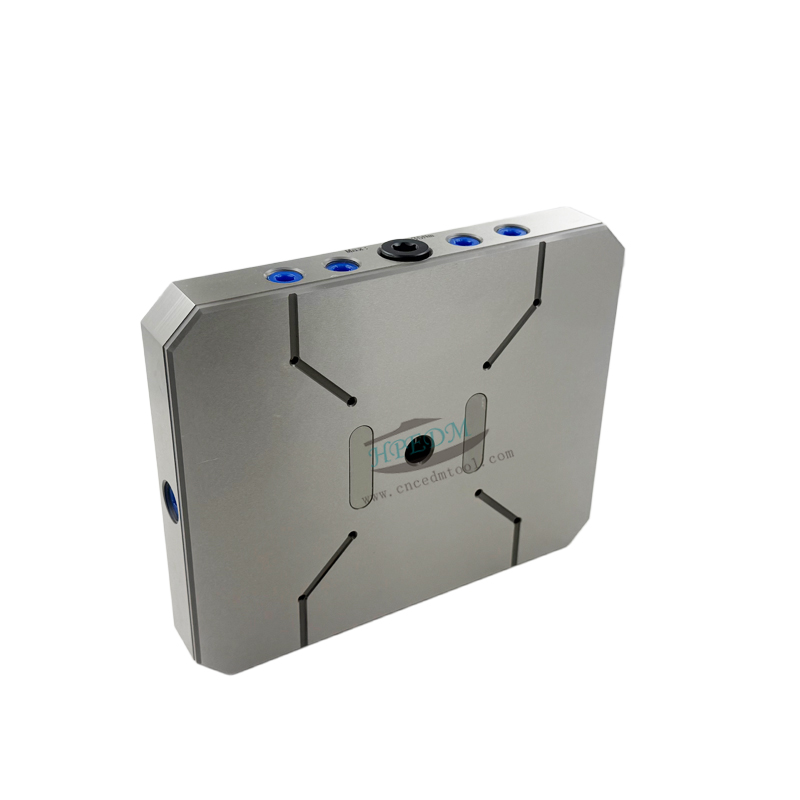

HPEDM® Quick•Point®  solidpoint® 96/52, zero point  Plate HE-FHDZ9652-F2 , without mounting bores

Comptabile with HWR  660203 Lang plate 45478

SPECIFICATIONS:

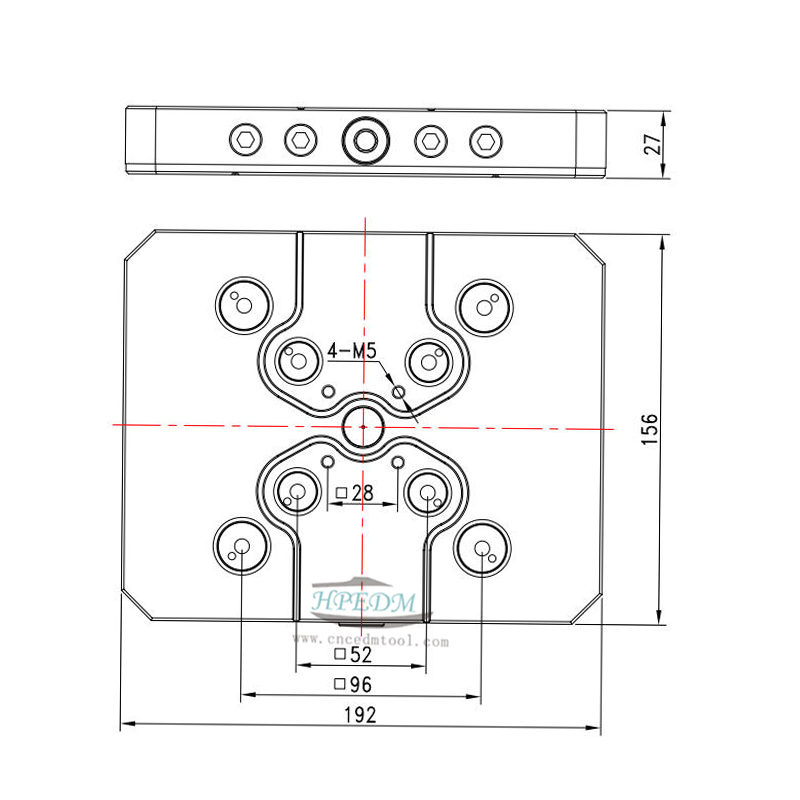

 Dimensions:  192*156*27mm

Rivet spacing: 16D/52mm; 20D/96mm

Repeat accuracy: 0.005mm

Hardness: HRC55-58

Locking Force: 18KN(4 Rivet)

Clamp type: Single clamping

Material: stainless  Steel

Application:

  The combi  plate combines the two zero-point system sizes 52 and 96 mm in one zero-point plate,

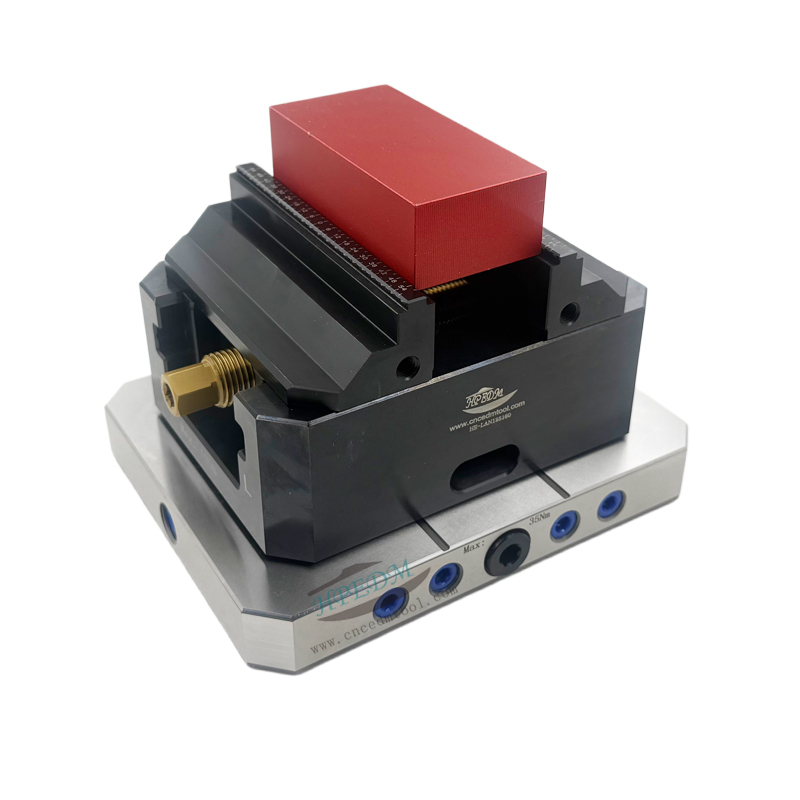

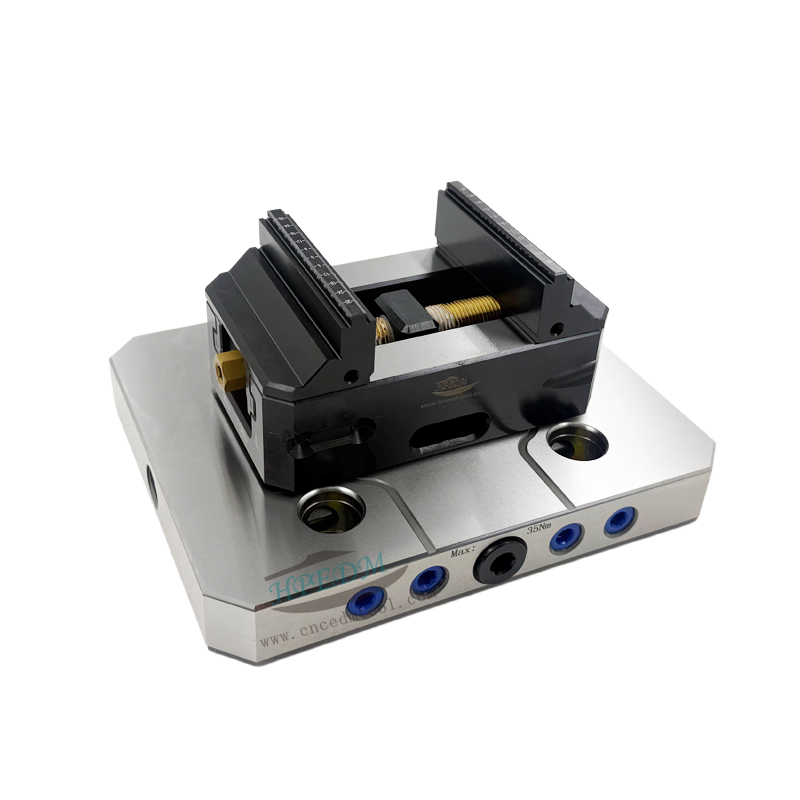

So It is able to mount both large and small HPEDM Lang and HWR  vises.

  This plate version  without mounting holes, which can be individually customized to meet specific customer requirements, tailored to the specific configuration of the machine table. Furthermore, by arranging two or more of these combination plates side-by-side, it is possible to establish a continuous, cross-plate 96 mm zero-point grid.

It can also be used in the 3-face pyramid or on the round aluminum riser.
