Description

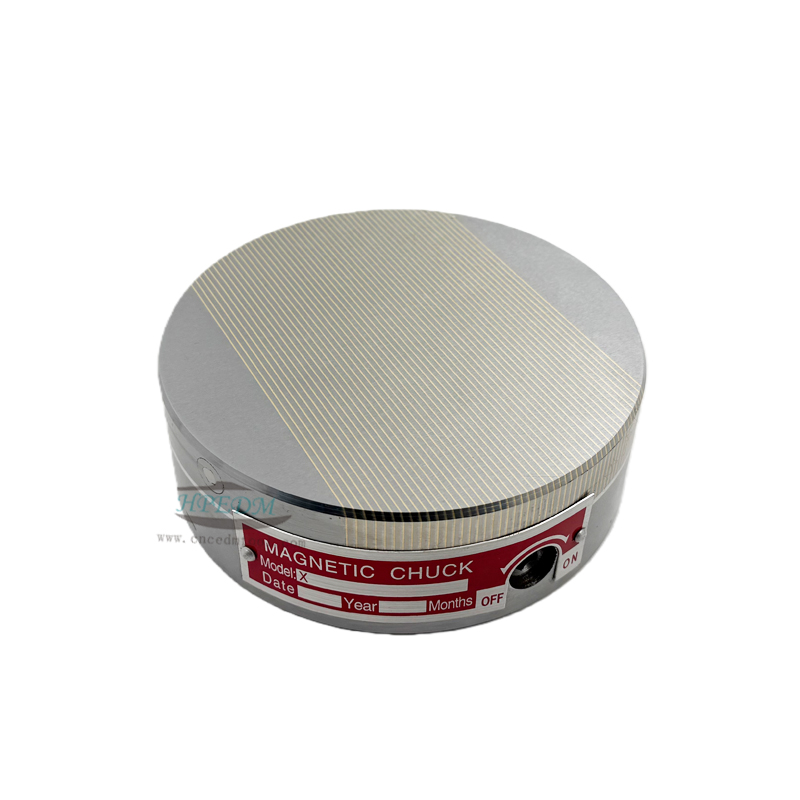

HPEDM D150 round magnetic plate HE-M06514.D150
- Version: ·Powerful magnet system with neodymiummagnets and low magnetic field height.
- Magnetic force continuously adjustable.
- Available with flange on request
- Size J (diameter and depth) machining is possible at the centre of the pole plate.
- For the other sizes, a 5 mm wearing thickness applies acrossthe entire surface. Concentric lines facilitatevisual alignment of the workpieces.
- Technical Data:
- Rated holding force: D160: 60 N/cm2
D 200: 90 N/cm2
Magnetic field height: 8 mm
Wear thickness of the top surface: 5 mm
Geometrically balanced: Quality G 6.3 - Application : For chucking small and thin to medium workpieces
