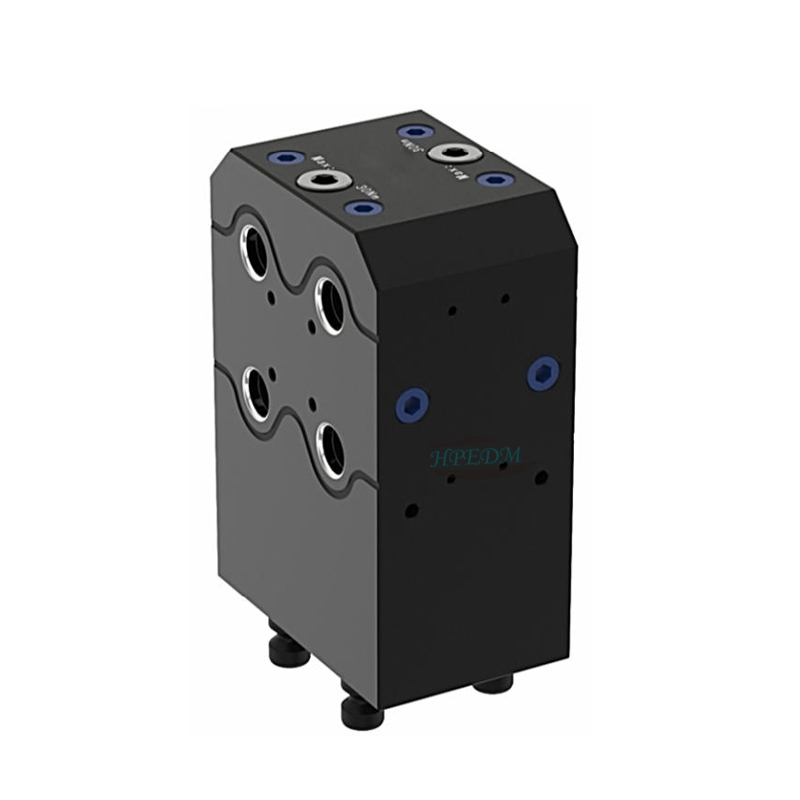

HPEDM® Lang Quick•Point® 52, Combi Twin Base 47220 HE-SMT52

Description

HPEDM  Lang Quick•Point® 52, Combi Twin Base for fixing lang 77 self centering vice   HE-SMT52

Compatible with lang  47220

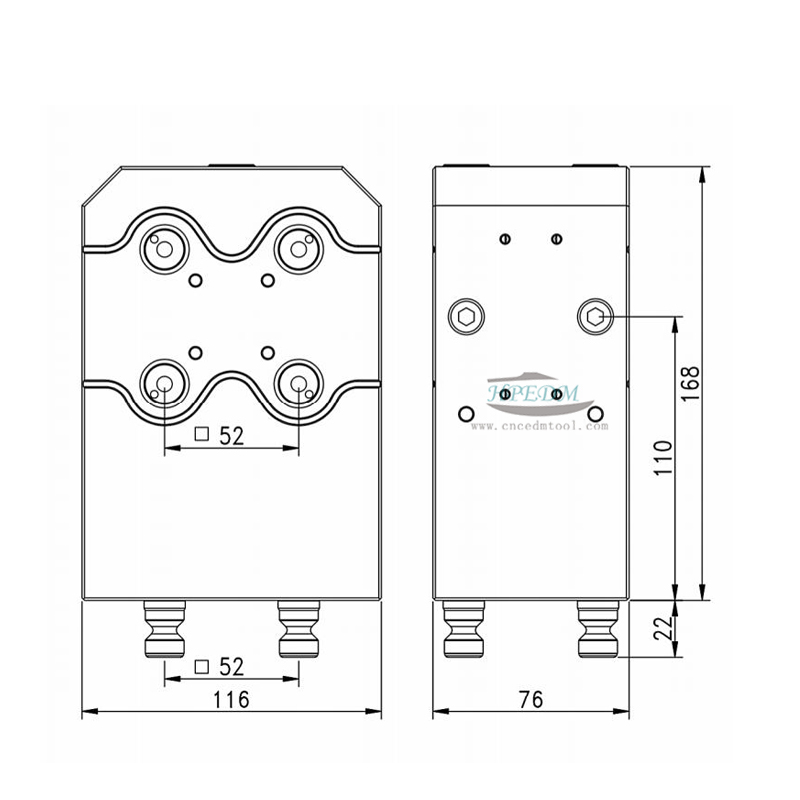

SPECIFICATIONS:

 Dimensions:  116*168*76mm

Rivet spacing: D16/ 52mm

Repeat accuracy: 0.005mm

Hardness:  HRC56-60

Material: tool  steel

 Application:  Vertical  mounting on the machine table

                              The hardened and ground twin base is ideal for the manual, 5-sided machining of workpieces with 3- or 4 axis machines,

                             as the workpiece can be rotated together with the clamping device by 4x 90° in the zero-point holes of the twin base with repeat accuracy and process reliability.
