Description

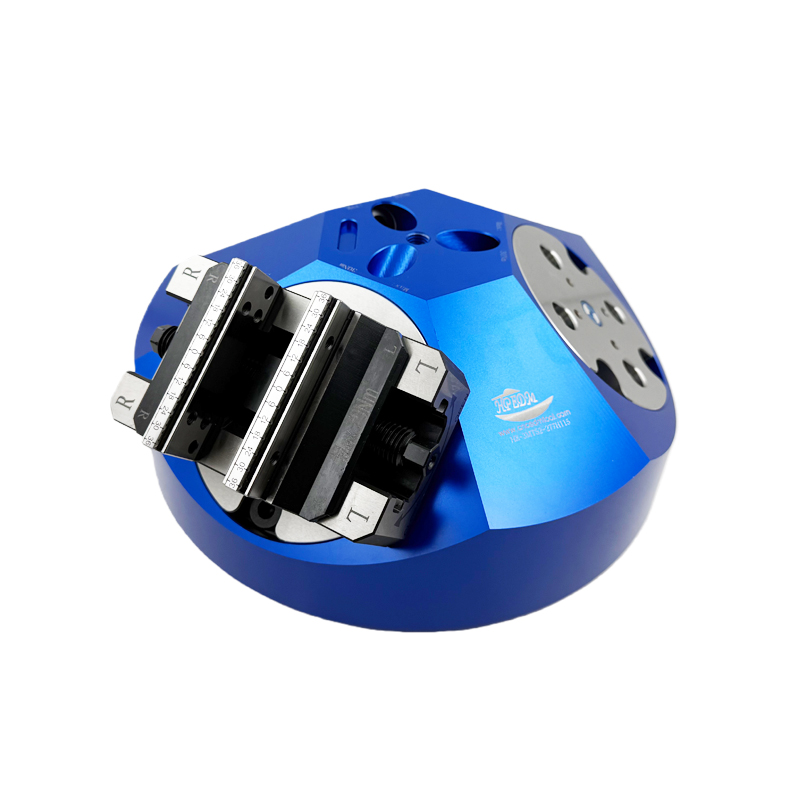

- HPEDM@ Lang Quick Point 52 3-face Pyramid HE-3MT52-277H115
- Similar to lang 43360
- for fixing self entering vise on 5 axis machine

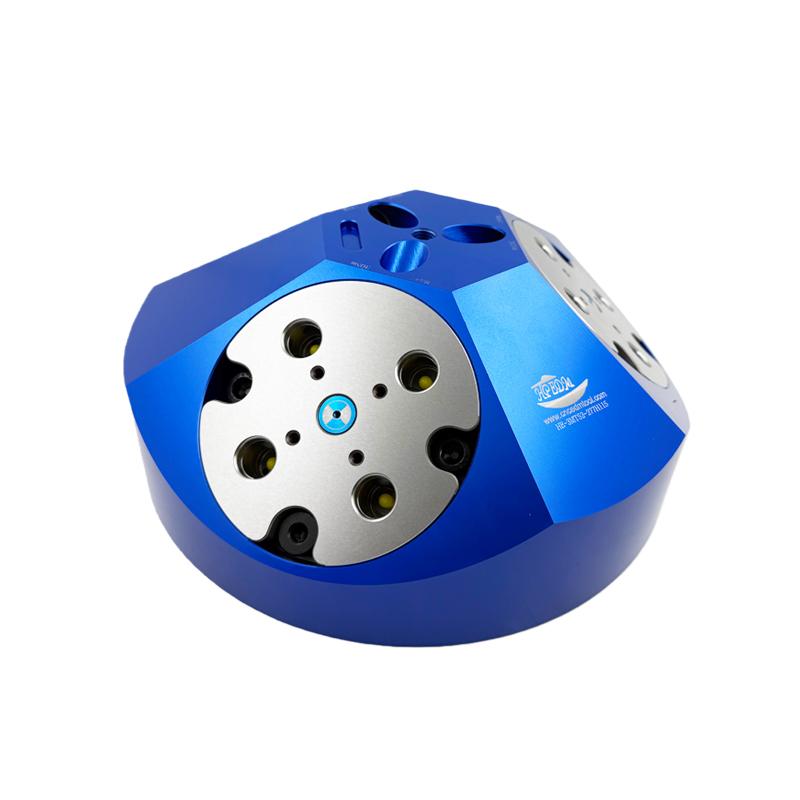

- including round plate ø 116 x 27 mm, with mounting bores at a distance of 96 mm(same as 45750)
- SPECIFICATIONS:
- Dimensions: D277*115mm
- Studs spacing: D16/ 52mm
- Repeat accuracy: 0.005mm
- Application: using on 4 axis or 5 axis CNC machine center for fixing width 77mm self centering vise .
- The 3-face pyramid made of high-strength aluminum offers users optimum accessibility in 5-face machining.
- This multiple clamping solution is ideal for increasing the machine runtime of 5-axis machining centers.
- Thanks to the combination zero point plates with the combined 52 mm grid size, 77width vise size of HPEDM centering vice can be used during machining.
- Note: The Pyramid could be produced as per your machine working table size.
