Description

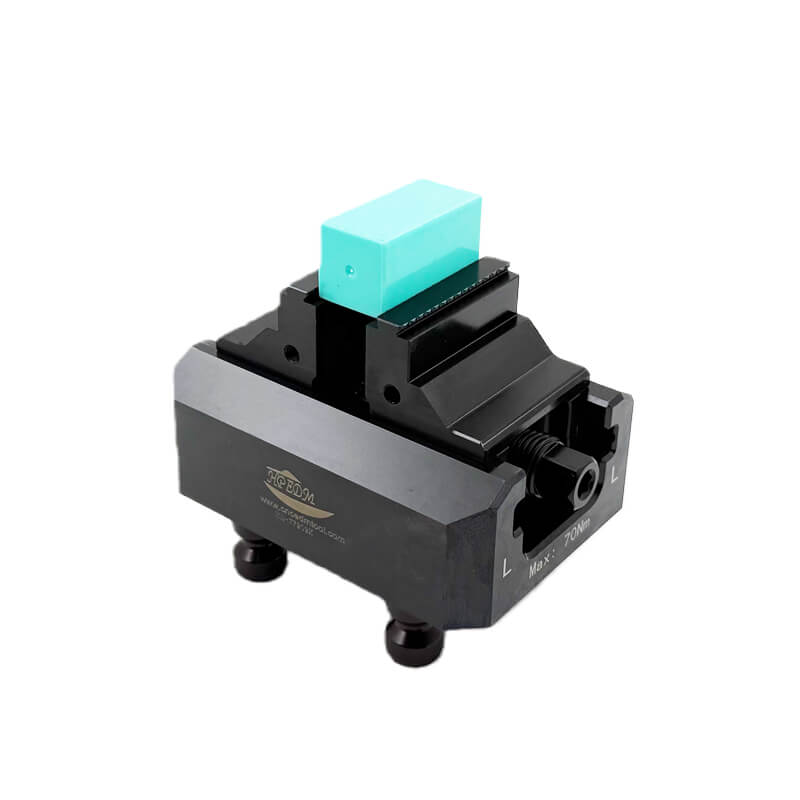

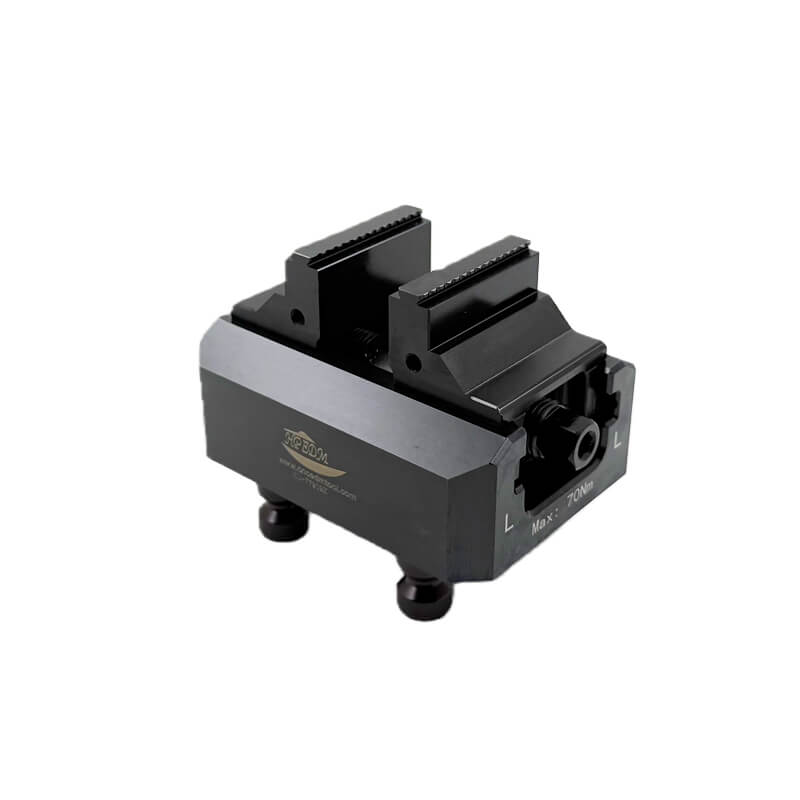

- HPEDM® Lang Makro•Grip 77 self centering 5-Axis Vise 48085-46 HE-77090X
- jaw width 46 mm, clamping range 0 – 85 mm
- Comptabile with Lang 48085-46
- SPECIFICATIONS:

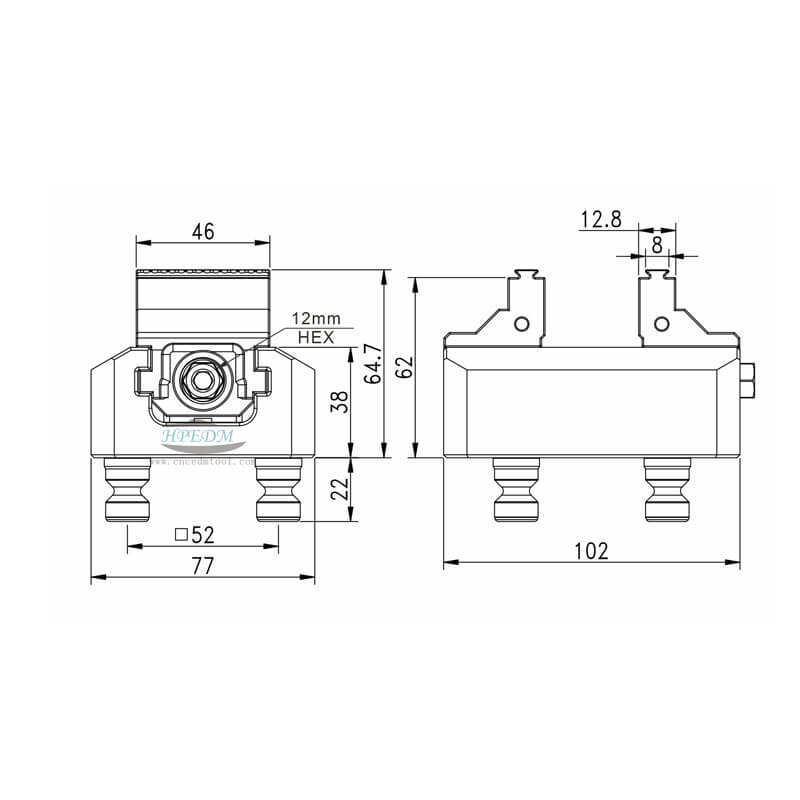

- Dimensions: 102*77*64.7mm
- Forward Jaws Clamping Range: 0-40mm
- Reverse Jaws Clamping Range: 50-85mm
- Jaw Width: 46mm
- Rivet spacing: 16D/52mm
- Repeat accuracy: 0.005mm
- Hardness: HRC55
- Locking Force: 18KN(4 Rivet)
- Clamp type: Single clamping
- Material: Steel
- Weight: 2.3kg
- Application:
- The HPEDM 5-axis vise is the ideal clamping device for the 5-axis machining of blank parts. Due to its compactness and low interference contours, it offers best accessibility to the workpiece. Because of the form-closure clamping principle, which requires only a low level of clamping pressure and can, therefore, be clamped without distortion or wear, it achieves the highest holding forces and guarantees maximum process reliability, even with high-tensile materia
