Description

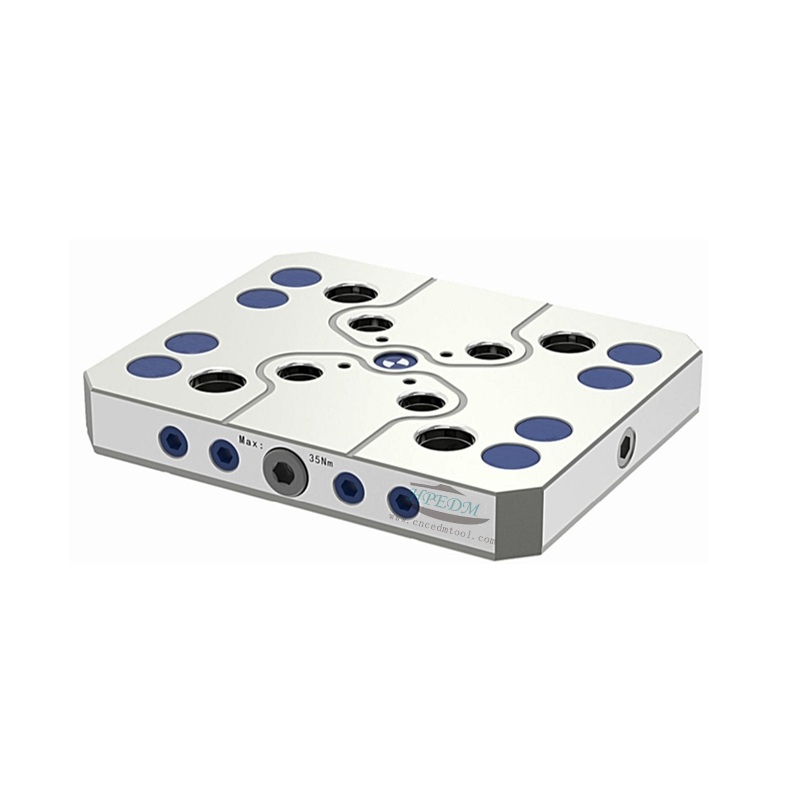

- HPEDM® Quick•Point® solidpoint® 96/52, zero point Plate HE-FHDZ9652-F2 , with mounting bores
-
Comptabile with HWR 660201 Lang plate 45448
- SPECIFICATIONS:

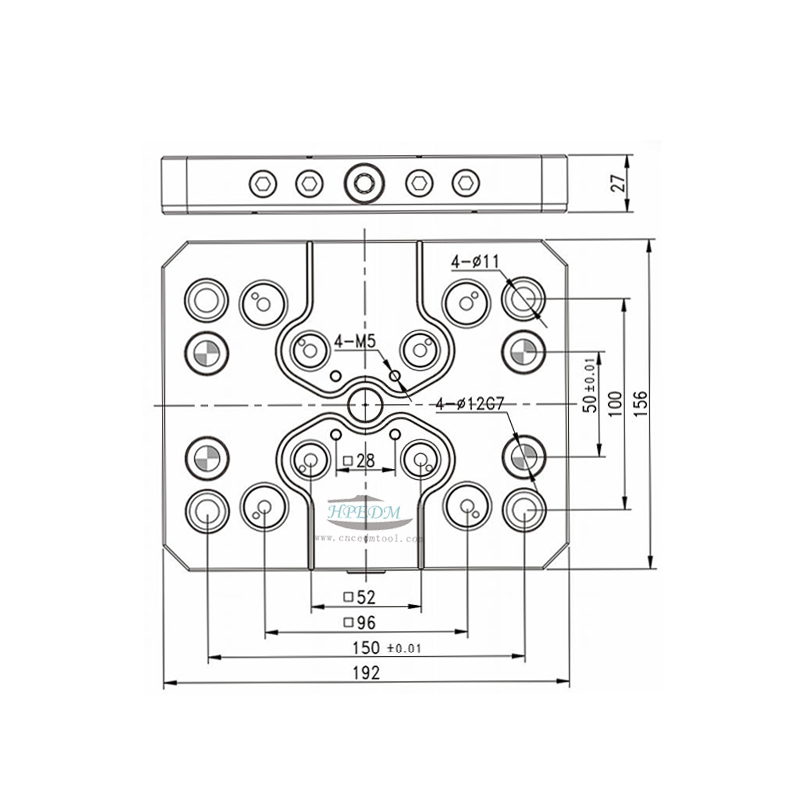

- Dimensions: 192*156*27mm
- Rivet spacing: 16D/52mm; 20D/96mm
- Repeat accuracy: 0.005mm
- Hardness: HRC55-58
- Locking Force: 18KN(4 Rivet)
- Clamp type: Single clamping
- Material: stainless Steel
- Application:
- The clamping edge of this combo zero-point plate allows mounting on basically all machine tables if clamps are used for this purpose.
- Due to its simple mounting, this plate version is also often used as an interface on pallet automations or on own customer-specific clamping devices.
- Due to the two grid sizes 52 mm and 96 mm,
- It is able to mount both large Width 125 and small width 77mm HPEDM vise and Lang Technik and HWR vises.
