Description

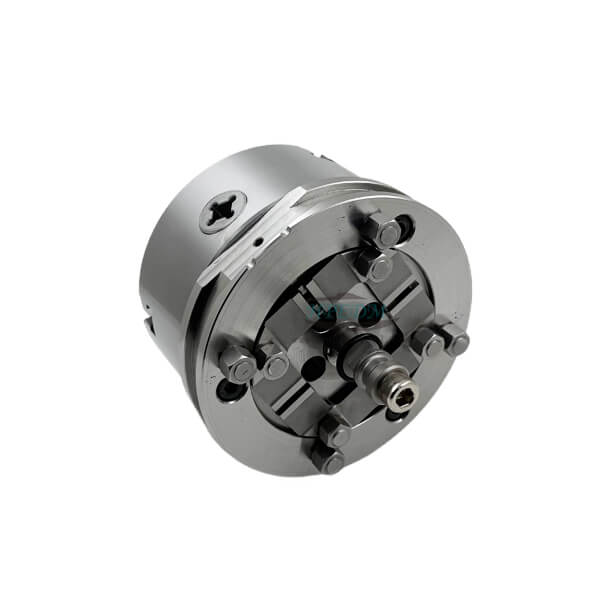

HPEDM EROWA Manual 3-jaw concentric chuck HE-E07113 ER-068697
Compatible with EROWA chuck ER-0068697

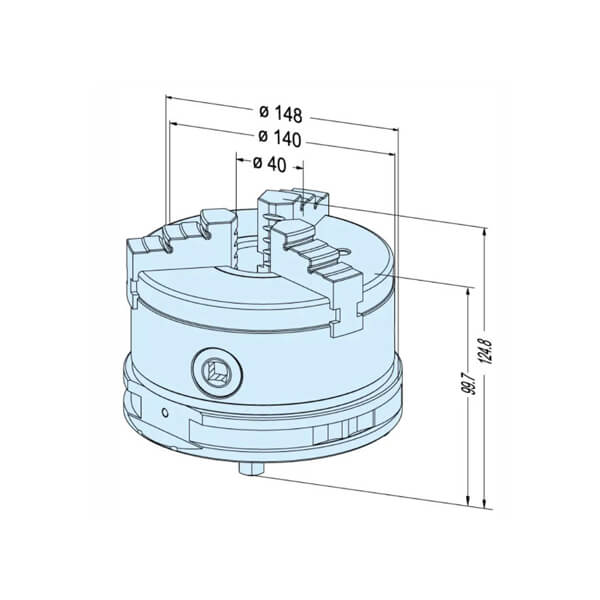

Version: Manually operated three-jaw chuck ø140mm. Central clamping range 3-53mm. Body made of steel.
High concentric accuracy according to DIN 6386. Fitted to pallet ø 148 G.
Including 3 hardened drilling jaws (outward stepped), 3 hardened turning jaws (inward stepped) and 1 wrench.
Repeatability: 0.002mm.
Please note : Max. speed 5,000 min-¹.
Application: In combination with EROWA chucks on lathes, round tables, dividing heads, etc.
Spare parts: Block jaws, soft, for three-jaw chuck, set of 3, size 140mm.
