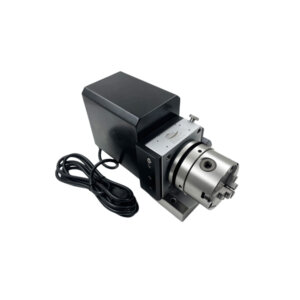

HPEDM Electrice motor 3 jaw punch former HE-103D-110v
SPECIFICATIONS:
- Specifications ：Center High: 80-81mm
- Grinding precision：within 0.005mm
- 3 jaw hole diameter: D15-16mm
- 3 jaw chuck Repeat clamping precision: 0.015mm
- Main body rotation accuracy: <0.003mm
- Hold the min outer diameter: 2mm
- Hold the max outer diameter: 70mm
- Hold the min inner diameter: 22mm
- Hold the max inner diameter: 64mm
- Motor 110V 60HZ 50-300RPM
Motor 220V 50HZ 50-300RPM

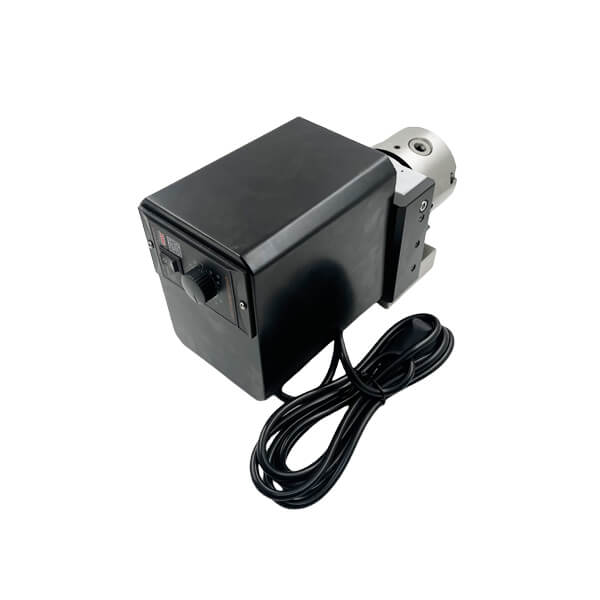

Remark: The motor regulator panel displays the speed adjustment ratio from 0 to 100: when adjusted to 100, the maximum speed is
300rpm, and the minimum is generally adjusted to 100rpm, which is approximately at position 30 on the panel. - Application:For grinding machine . CNC milling machine. To be fitted workpiece directly , To improve your productivity.
