Description

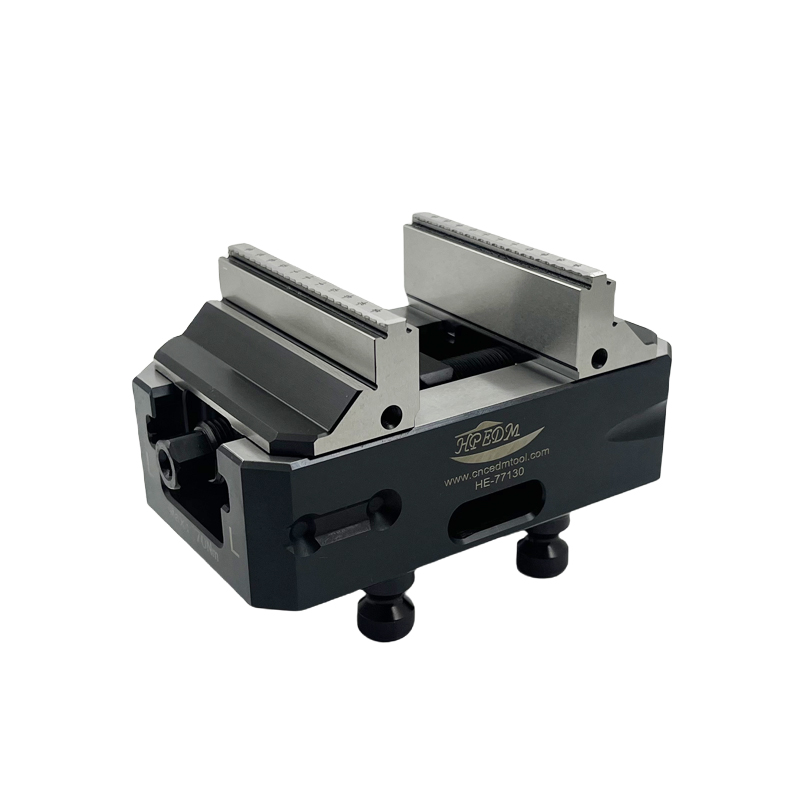

- HPEDM Makro•Grip® 77 5-Axis self centering Vise HE-77130
- Jaw width 77 mm, Clamping range 0 – 120 mm
- Compatile with Lang centering vise 48120-77
- SPECIFICATIONS:
- self centering with double direction
- Clamping Range: 120mm
- Dimensions: 130 x 77 x 65 mm
- Self precision: 0.02mm
- Hardness : HRC 58-62
- Weight: 2.9kg
- Material : steel
- Warranty: 1 year
- Application: For CNC machine center
Fixed on 4 axis or 5 axis CNC machine center for vertical or horizontal precision machining,
The popular 5-axis vise with a clamping range of 0 – 120 mm and a jaw width of 77 mm is the ideal machine vise for 5-axis machining of unmachined parts.
It is used both in manual milling and in automated production with RoboTrex.
Workpieces are clamped by form-fit in the clamping jaws of the centering vise with a clamping depth of just 3 mm.
Due to the centric clamping and the slim design, clamped workpieces are ideally accessible from all sides.
On the side of the base body, it has an automation interface to be gripped directly by the robot’s gripper.
