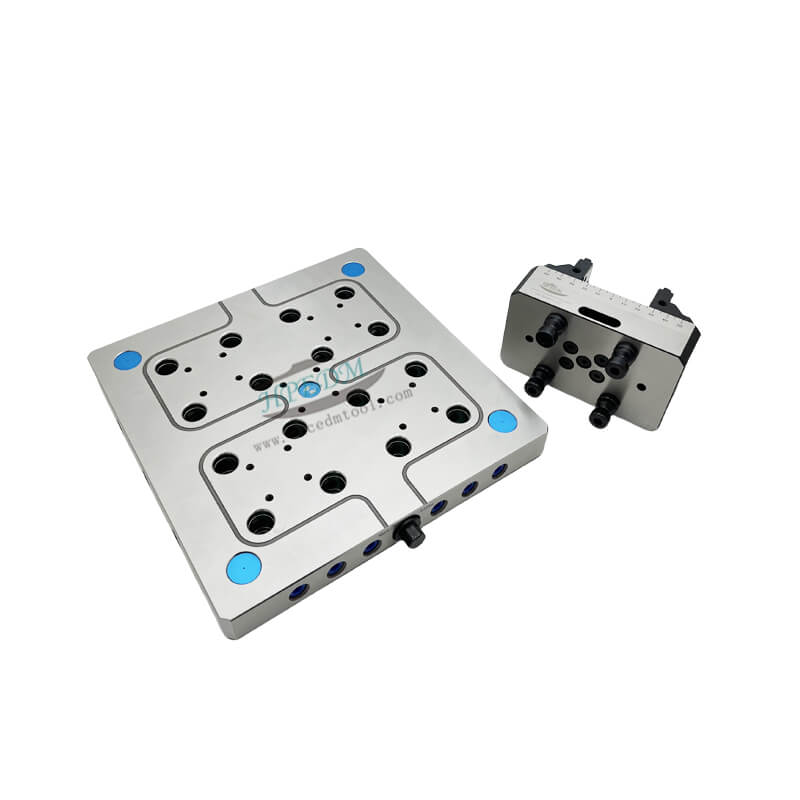

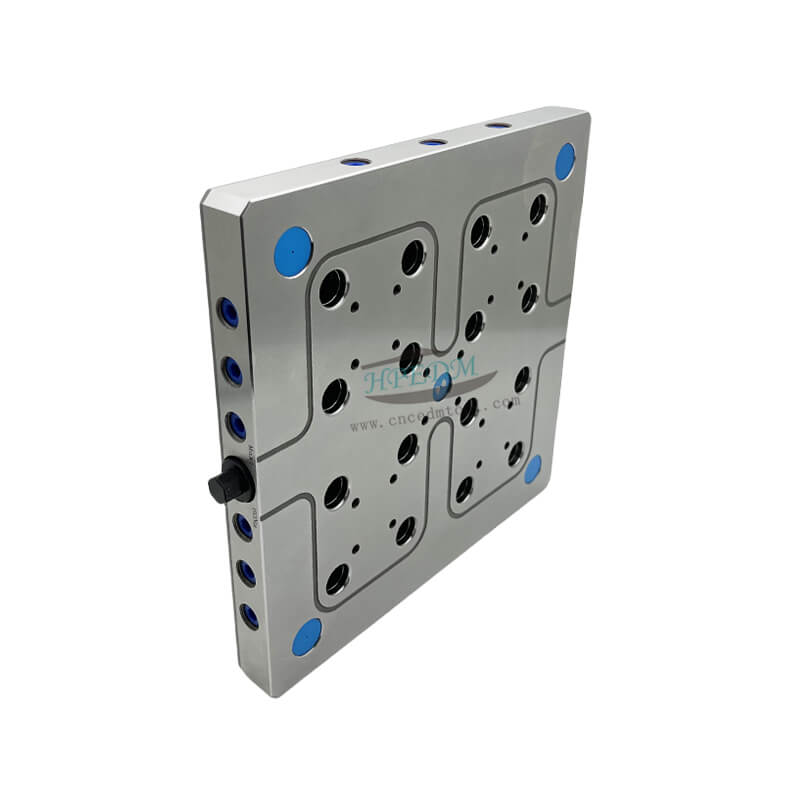

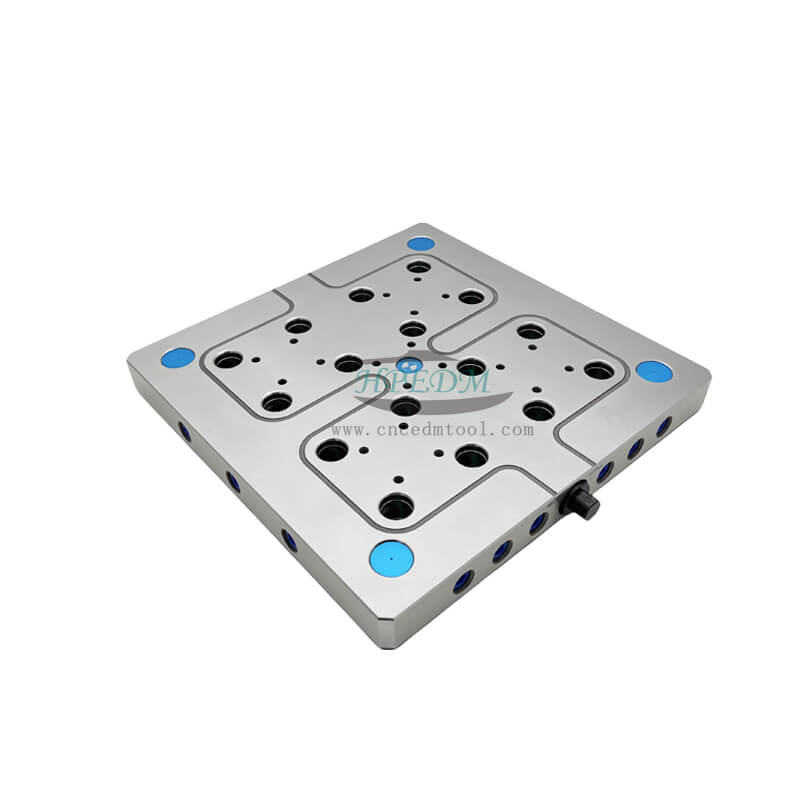

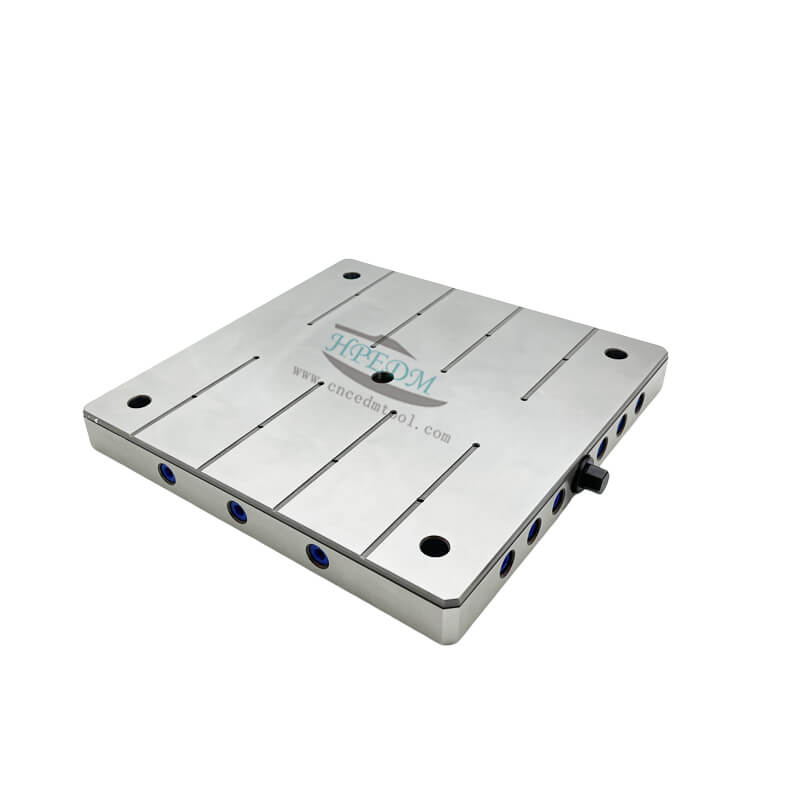

HPEDM 5 axis quick point adapter pallet

Description

HPEDM self centering vise’s quick  point adapter pallet HE-KHDZ52A-4

Compatible with Lang vise system perfectly.

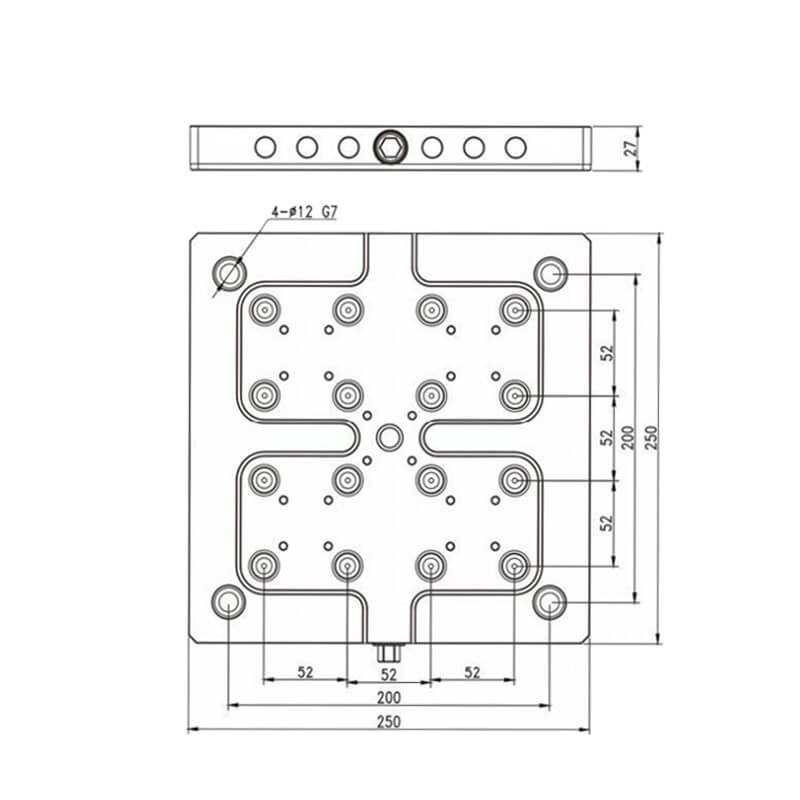

SPECIFICATIONS:

Size:250*250*27mm

Rivet Pitch:16D/52mm

Repositioning Accuracy: 0.005mm

Locking Force: 18KN(4 Rivet)

 Application:  Four stations.  Fix 4 pcs vise at a time.

using on 4 axis or 5 axis  CNC machine center for vertical or horizontal precision machining,

Using on CNC machine, grinding machine, EDM machine for clamping workpiece
