HPEDM® 5 axis lang technik HWR Quick•Point® 52, 43360 3-face Pyramid HE-52A-P330

Description

HPEDM  lang technik HWR Quick•Point® 52, 43360 3-face Pyramid HE-52A-P330

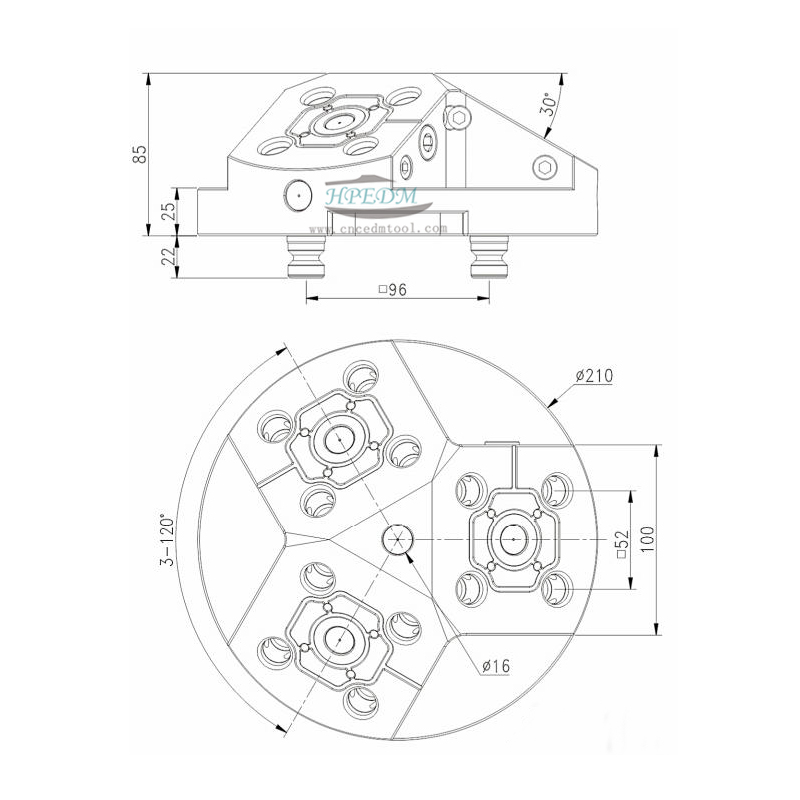

SPECIFICATIONS:

 Dimensions:  D210*85mm

Rivet spacing: D16/ 52mm

Repeat accuracy: 0.005mm

 Application:  on  5 axis  CNC machine center for fixing width 77mm  self centering vise   .

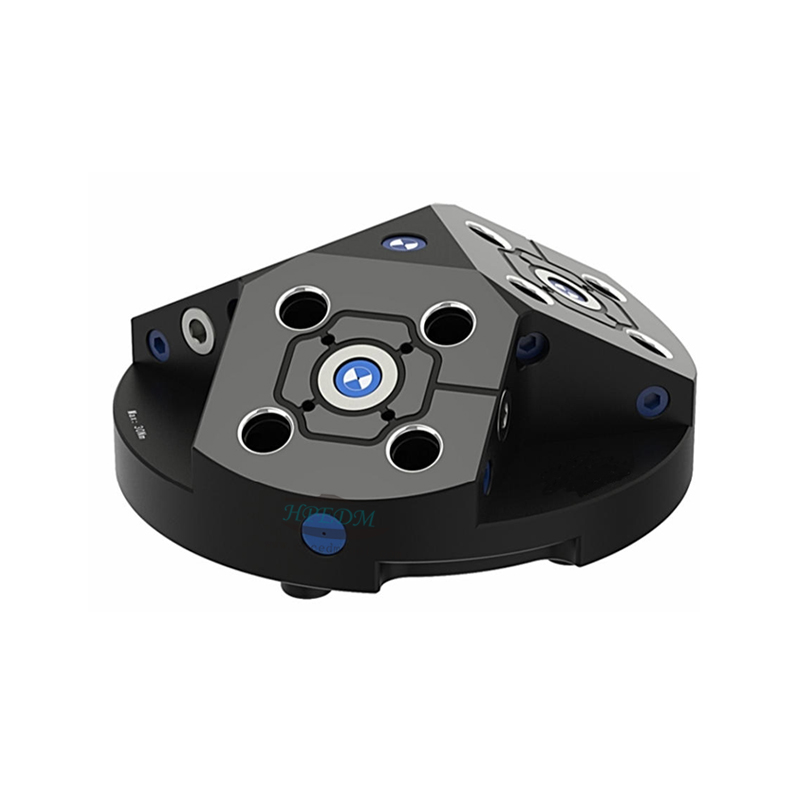

The 3-face pyramid made of high-strength aluminum offers users optimum accessibility in 5-face machining.

This multiple clamping solution is ideal for increasing the machine runtime of 5-axis machining centers.

Thanks to the combination zero point plates with the combined 52 mm  grid size, any vise size of LANG Technik  and HWR can be used during machining
