HPEDM 3 sides pyramid adapter of self centering vise for using on 5 axis machine

Description

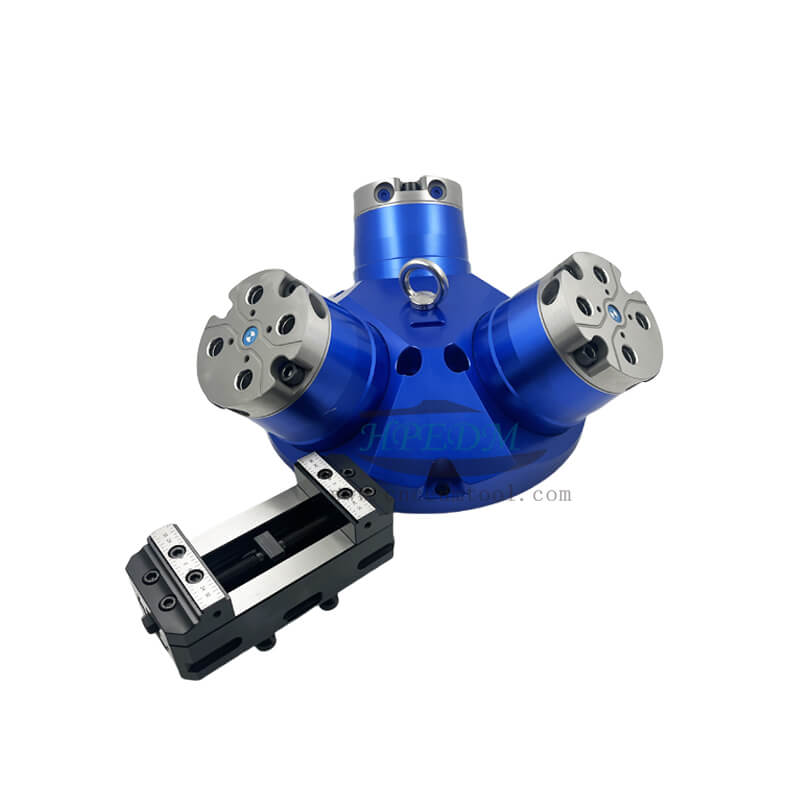

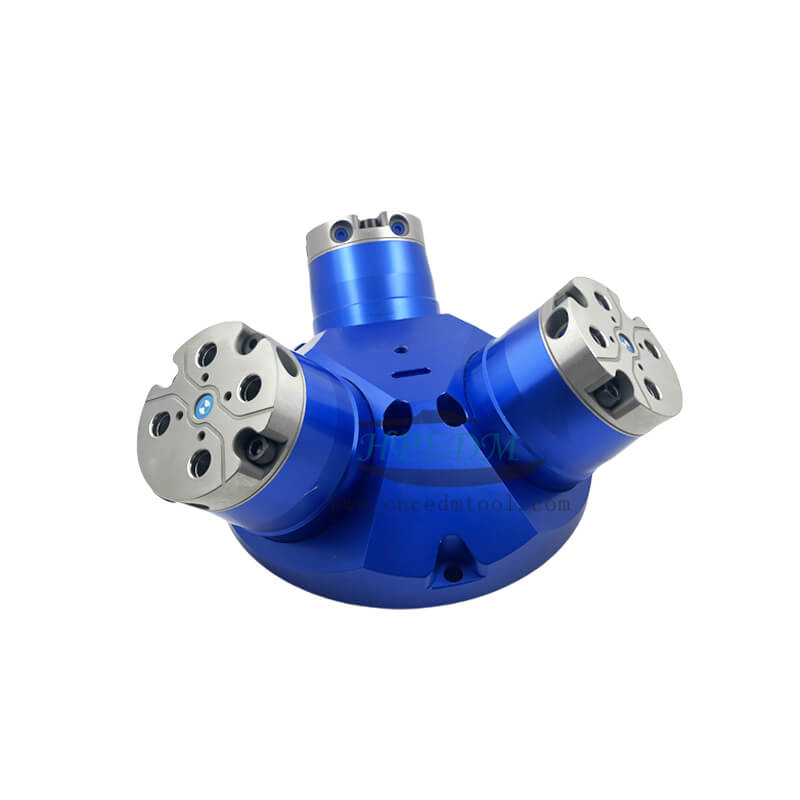

HPEDM 5 axis 3 sides pyramid with quick point pallet  for fixing self entering vise  HE-3MT52

SPECIFICATIONS:

Dimensions:  D277*160mm

Rivet spacing: D16/ 52mm

Repeat accuracy: 0.005mm

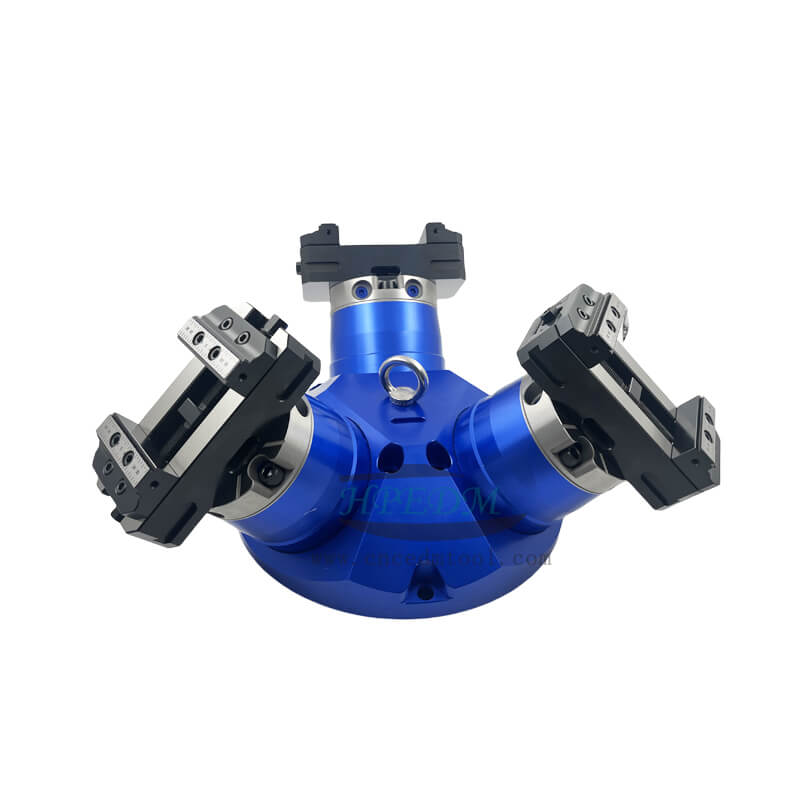

Application:  using on 3 axis 4 axis or 5 axis  CNC machine center for fixing width 77mm  self centering vise   .

Note:  The adaper was produced as per your machine working table size.
