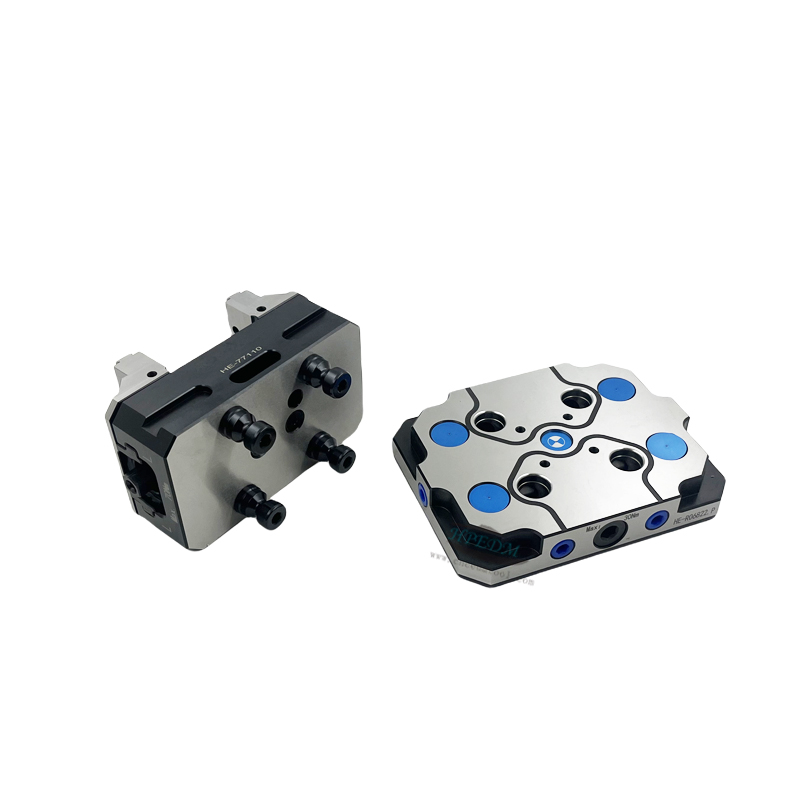

HPEDM® 5 axis Quick Point 52, Single Plate 45150 for Self centering vise HE-KHDZ52-A

Description

HPEDM self centering vise’s  Quick•Point® 52, Single Plate  HE-KHDZ52-A

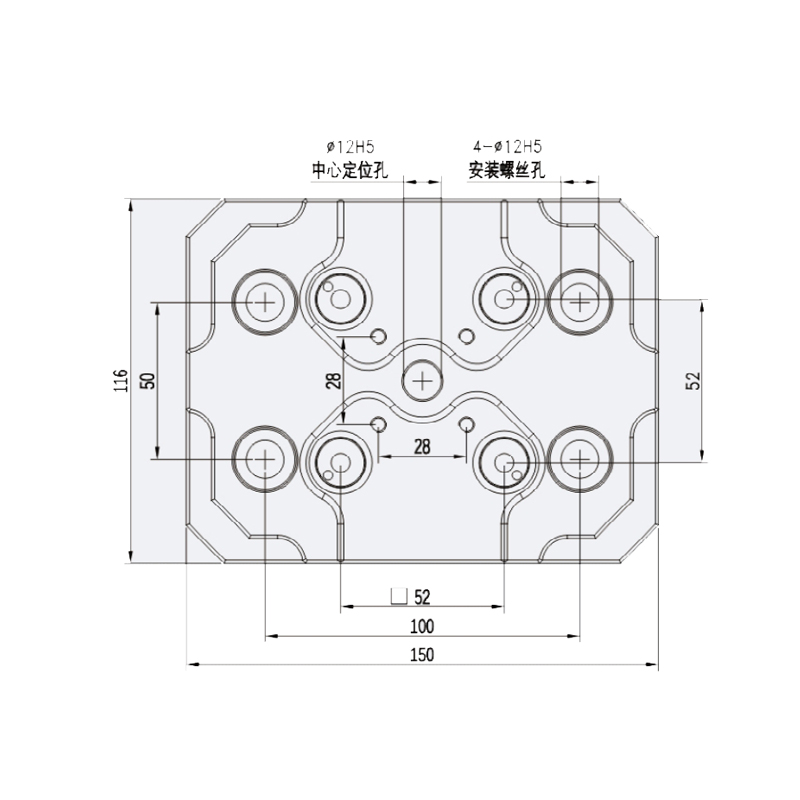

150 x 116 x 27 mm, with bores 100 x 50 mm and clamping edge

Compatible with lang  quick point plate 45150

SPECIFICATIONS:

 Adapter for  width 46/77mm self centering vise

Size:150*116*27mm

Stud Pitch:  52mm

Clamping Stud size:   Diamter 16mm

Locking Force:18KN(4  studs)

Torque: 30 Nm

Material: Steel

Mounting bores: 100 x 50 mm

Weight: 2.9kg

 Application:  For CNC  machine center

using on 4 axis or 5 axis  CNC machine center for   fixing Lang  vise system for quick change
